Heavy machinery and oilfield equipment often depend on components that receive little attention until something goes wrong. Hoses are a good example. A damaged line can interrupt equipment operation, cause fluid loss and create unplanned maintenance, while a correctly selected hose can quietly perform its job for an extended period.
Two important products in demanding fluid-transfer environments are Hydraulic Hose and frac hose. Although both transport fluids, they are developed for different operating conditions. Hydraulic hoses are primarily associated with hydraulic power systems, while frac hoses are used for specialised fluid transfer in hydraulic fracturing and related oilfield operations.
Understanding these differences can help engineers, equipment operators and procurement teams make more informed purchasing decisions.
Why Hydraulic Hose Is Essential for Heavy Machinery
A Hydraulic Hose transfers pressurised hydraulic fluid between different components of a hydraulic circuit. The fluid carries energy from the hydraulic pump to valves, cylinders and motors, allowing machinery to create controlled mechanical movement.
This principle powers equipment across numerous industries.
Common applications include:
- Excavators and loaders
- Cranes
- Forklifts
- Agricultural machinery
- Mining equipment
- Industrial presses
- Material-handling equipment
- Manufacturing machinery
Flexibility is one of the main reasons hoses are used instead of rigid pipes in many locations. When an excavator boom moves, for example, the hydraulic connections must accommodate that movement without preventing fluid flow.
However, flexibility alone does not make a hose suitable for an application. Its construction must also match the required pressure, fluid, temperature and operating environment.
What Makes a Hydraulic Hose Strong?
Most hydraulic hoses contain multiple layers designed to perform different functions.
The inner tube carries the hydraulic fluid and needs to be chemically compatible with it.
The reinforcement layer provides strength. Depending on the hose type, this may consist of textile reinforcement, braided steel wire or spiral steel wire.
The outer cover protects the internal layers from abrasion, oil, moisture, weather and other external influences.
These layers work together. Damage to one area can eventually affect the integrity of the complete hose assembly.
What Is a Frac Hose and Where Is It Used?
A frac hose is designed for particular fluid-transfer duties found in hydraulic fracturing and other oilfield operations.
Fracturing sites can require substantial volumes of water and prepared fluids to be transferred between storage tanks, blending equipment, pumps and other wellsite systems.
Depending on its design and manufacturer specification, a frac hose may be suitable for:
- Water transfer
- Fracturing fluids
- Chemical mixtures
- Slurry
- Compatible oilfield media
Because these applications vary considerably, not every frac hose is suitable for every fluid or pressure condition.
The actual application should always determine the specification.

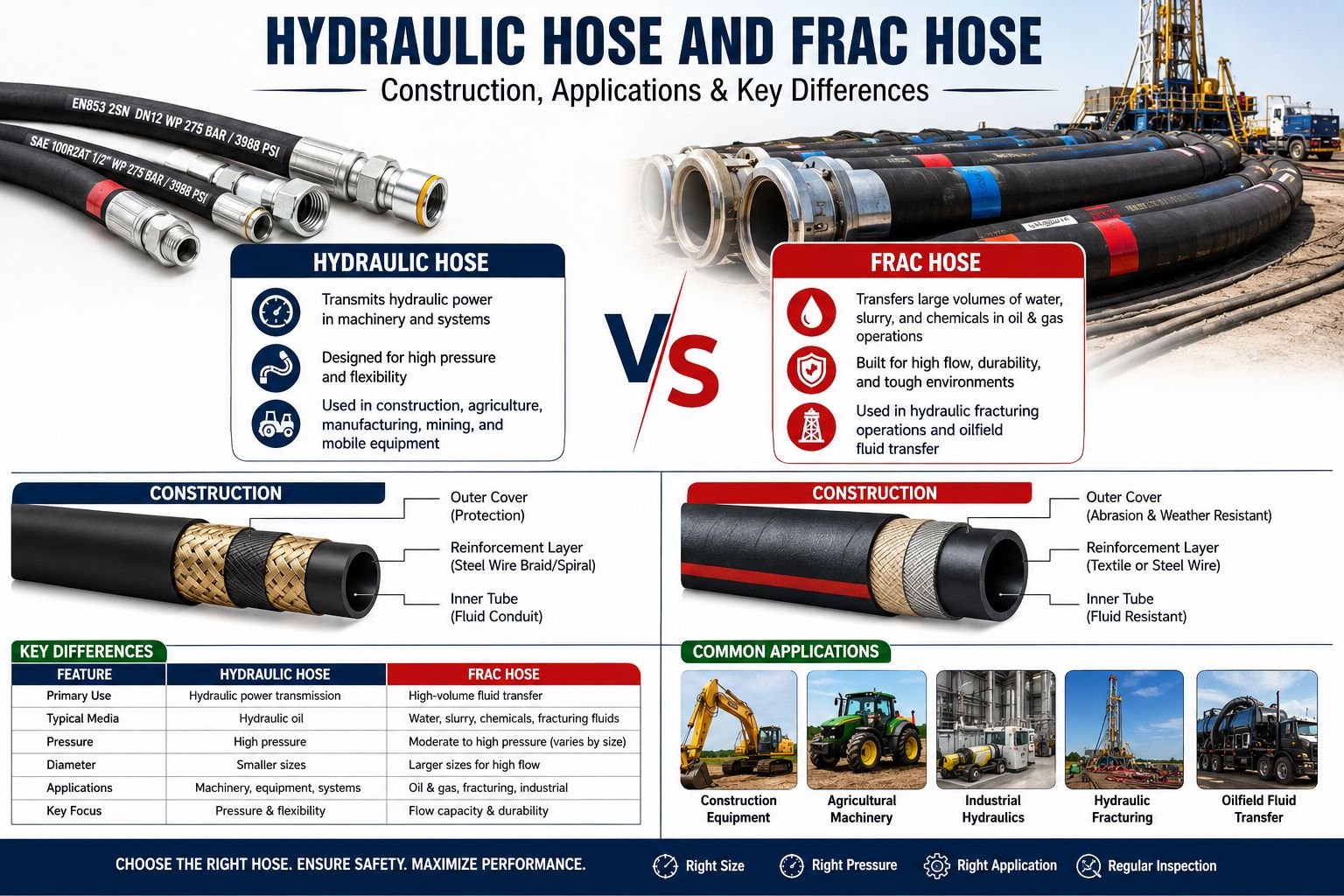

Hydraulic Hose vs Frac Hose: Understanding the Difference
Although these hoses share some engineering principles, their typical applications differ.
| Factor | Hydraulic Hose | Frac Hose |
| Main function | Hydraulic power transmission | Oilfield fluid transfer |
| Typical environment | Industrial and mobile machinery | Hydraulic fracturing sites |
| Common media | Hydraulic fluids | Water, slurry and frac fluids |
| Flow requirement | Based on hydraulic circuit | Often high-volume |
| Important feature | Pressure resistance and flexibility | Flow capacity and field durability |
| Common challenge | Heat, movement and abrasion | Abrasion, chemicals and rough handling |
The important lesson is simple: a similar appearance does not mean two hoses are interchangeable.
Pressure Rating Should Never Be an Afterthought
Pressure is one of the most important factors when selecting a Hydraulic Hose.
Hydraulic machinery can operate under substantial pressure, and the hose must be rated for the intended system conditions. Pressure pulses and operating cycles may also influence the application.
Buyers should understand the difference between working pressure and burst pressure.
Working pressure refers to the pressure conditions for which the hose is intended to operate according to its specification. Burst pressure relates to destructive testing and should not be treated as the normal operating limit.
The same principle applies when selecting a frac hose. Pressure requirements should be established before purchasing the assembly.
Why Hose Diameter Matters to System Performance
Hose diameter directly affects fluid velocity and pressure loss.
An undersized Hydraulic Hose may force fluid to travel at excessive velocity. This can increase pressure losses and contribute to unwanted heat within the hydraulic circuit.
Diameter is also particularly important for a frac hose, where substantial flow volumes may be involved.
Selecting hose size should therefore consider:
- Required flow rate
- Internal diameter
- Fluid properties
- Hose length
- System pressure
- Acceptable pressure loss
Selecting a hose simply because its fitting connects to the equipment is not sufficient engineering practice.
Fluid Compatibility Is Just as Important as Pressure
One of the easiest mistakes to make is assuming that any industrial hose can handle any industrial fluid.
The inner tube is continuously exposed to whatever passes through the hose. An incompatible fluid may cause the material to soften, swell, harden or crack.
For a Hydraulic Hose, compatibility with the hydraulic oil or system fluid should be confirmed.
For a frac hose, the complete fluid mixture requires consideration. Water, chemical additives and suspended abrasive materials may all influence hose selection.
Manufacturers’ compatibility recommendations should therefore form part of the purchasing process.
How Temperature Influences Hose Performance
Temperature affects hose materials over time.
There are two temperatures to consider: the temperature of the fluid inside the hose and the ambient temperature surrounding it.
For example, a hydraulic hose installed near an engine or exhaust component can experience significant external heat even when the hydraulic fluid remains within an acceptable range.
Oilfield hoses can face different challenges because they operate outdoors under changing environmental conditions.
The hose selected should be suitable for both internal and external temperature conditions.
Poor Routing Can Shorten Hose Life
Even an appropriate Hydraulic Hose can deteriorate prematurely when poorly installed.
A common problem is excessive bending close to a fitting. Another is allowing a hose to continuously rub against a machine frame.
Good routing practices avoid:
- Excessive twisting
- Sharp bends
- Constant rubbing
- Unnecessary tension
- Crushing
- Sharp edges
- Excessive heat exposure
Every engineered hose has a recommended minimum bend radius. Following this requirement helps prevent unnecessary stress on its reinforcement.
For frac hose installations, routing should also consider site movement, vehicles and other sources of potential mechanical damage.
Fittings Are Part of the Complete Hose System
Hose quality alone does not guarantee a reliable assembly.
Fittings must match the hose type, size, pressure requirement and intended connection. For crimped hydraulic assemblies, correct crimp dimensions are particularly important.
Using unsuitable fittings can create problems even when the Hydraulic Hose itself has the correct pressure rating.
Similarly, frac hose couplings should be selected according to the intended pressure, media and field conditions.
A hose and its fittings should therefore be treated as one complete engineered assembly.
Warning Signs That Should Not Be Ignored
Routine visual inspection can reveal developing problems before a complete failure occurs.
Watch for:
- Cracking
- Deep abrasion
- Blistering
- Leakage
- Exposed reinforcement
- Kinking
- Damaged fittings
- Corroded connections
- Unusual stiffness
- Deformation
High-pressure hydraulic leaks require particular caution. Maintenance personnel should follow appropriate safety procedures rather than attempting to locate a suspected high-pressure leak with their hands.
How to Choose the Right Hydraulic Hose
A useful hose-selection process begins by collecting accurate operating information.
Consider these six areas:
Size: Determine internal diameter and required length.
Temperature: Check both fluid and ambient temperatures.
Application: Understand movement, abrasion and environmental exposure.
Media: Identify the exact fluid passing through the hose.
Pressure: Determine normal and maximum operating requirements.
Ends: Confirm the required fittings and connection types.
Providing these details to a qualified supplier makes it easier to identify a Hydraulic Hose appropriate for the actual application.
What to Consider When Choosing a Frac Hose
A similar approach applies to frac applications, although additional attention should be given to field conditions.
Before selecting a frac hose, determine:
- Fluid composition
- Required flow volume
- Internal diameter
- Operating pressure
- Temperature
- Hose length
- Abrasion conditions
- Movement frequency
- Connection requirements
If slurry or abrasive material will pass through the hose, this information should be clearly communicated to the supplier.
Why Preventive Hose Maintenance Makes Business Sense
Waiting until a hose fails can prove expensive.
A failure can result in more than the cost of a replacement hose. Depending on the application, businesses may also experience machine downtime, labour costs, lost fluid, cleanup requirements and production delays.
Preventive inspection provides an opportunity to identify deterioration earlier.
The goal is not to replace every hose unnecessarily. It is to understand its condition and manage replacement according to application severity, manufacturer guidance and maintenance procedures.
Frequently Asked Questions
1. What is a Hydraulic Hose?
It is a flexible reinforced hose designed to transfer pressurised hydraulic fluid between components in hydraulic machinery.
2. What is a frac hose?
A frac hose is designed for specific fluid-transfer requirements associated with hydraulic fracturing and oilfield operations.
3. Are hydraulic hoses and frac hoses the same?
No. Their typical sizes, construction, fluid compatibility, flow requirements and applications can differ.
4. What industries use Hydraulic Hose?
Construction, mining, agriculture, manufacturing, logistics and material handling are common users.
5. Can frac hose transfer slurry?
Some designs can handle slurry, but suitability should be verified according to the hose specification and media composition.
6. Why does hydraulic hose size matter?
Correct internal diameter helps manage fluid velocity, pressure loss and hydraulic system performance.
7. What damages hydraulic hoses?
Common factors include abrasion, heat, excessive pressure, poor routing, incompatible fluids and incorrect installation.
8. What is minimum bend radius?
It is the minimum recommended radius through which a hose can be bent without excessive stress.
9. How should hose fittings be selected?
They should match the hose construction, dimensions, pressure requirements and equipment connection.
10. How often should hoses be checked?
Inspection frequency depends on application severity, operating environment, manufacturer recommendations and maintenance requirements.
