Heavy-duty drilling equipment operates in an environment where pressure, movement, vibration and challenging fluids are part of everyday operations. While pumps, drilling equipment and control systems often receive most of the attention, flexible hoses are equally important to efficient fluid transfer. This makes choosing the right Hydraulic Hose Manufacturer an important decision for drilling, mining and industrial businesses.
A drilling hose is not simply an oversized hydraulic hose. It is developed for demanding applications where flexible connections must accommodate movement while transferring specified fluids under controlled pressure conditions. Selecting the correct hose requires an understanding of construction, pressure rating, fluid compatibility, temperature, bend radius and installation.
Why Hydraulic Hoses Are Critical in Heavy-Duty Applications
Hydraulic systems use pressurised fluid to transmit power. Hydraulic hoses provide flexible connections between pumps, valves, cylinders, motors and other components.
Unlike rigid piping, hoses can accommodate movement, making them suitable for equipment such as:
- Excavators
- Cranes
- Mining machinery
- Drilling rigs
- Agricultural equipment
- Material-handling machines
- Marine equipment
- Industrial production machinery
However, flexibility alone is not enough. A hose must also withstand the pressure, temperature and environmental conditions associated with the application.
A technically capable Hydraulic Hose Manufacturer considers all these factors during product design and selection.

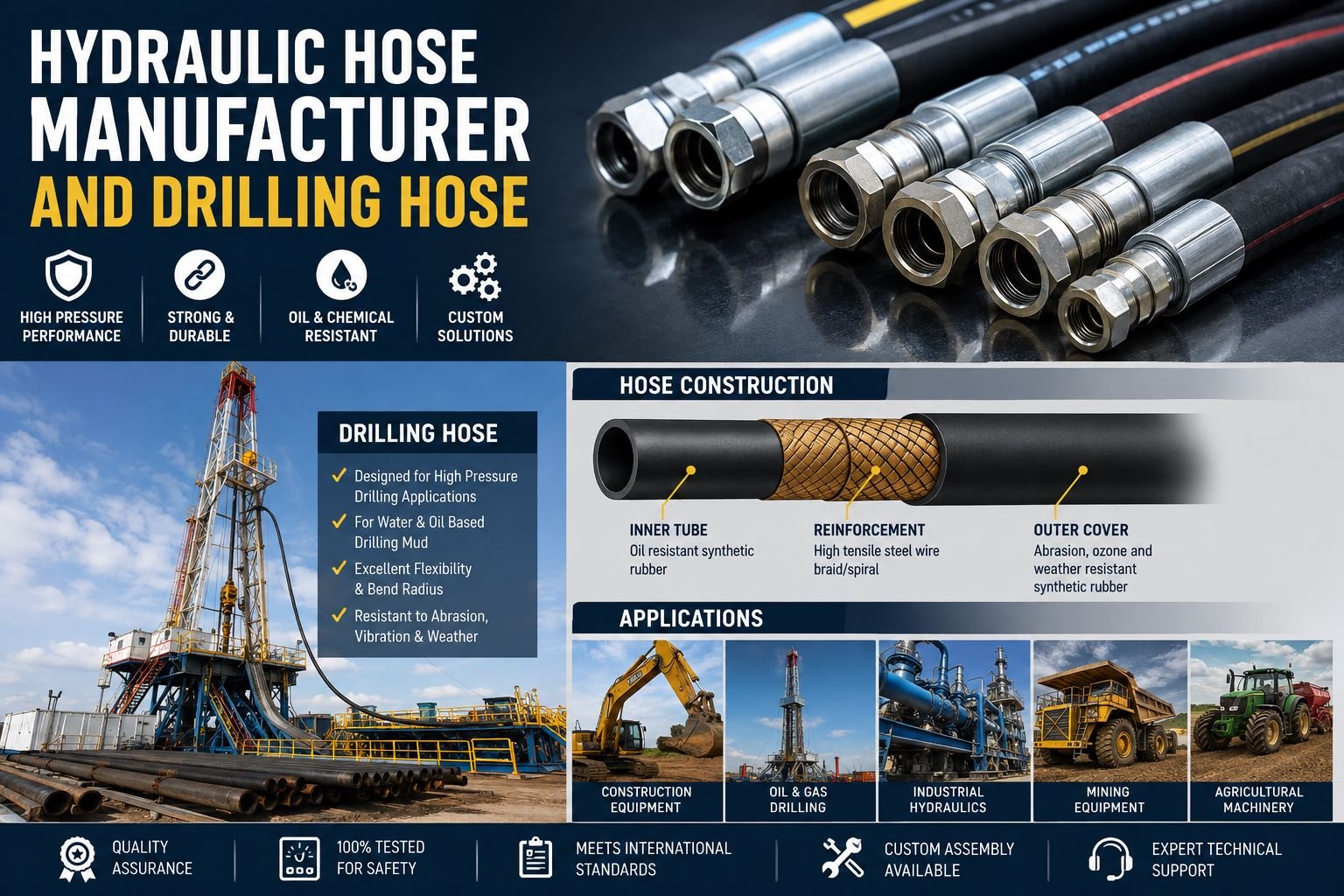

Understanding How Hydraulic Hoses Are Built
Although hydraulic hoses may look simple externally, their internal construction involves several engineered layers.
Inner Tube
The inner tube carries hydraulic oil, drilling fluid or another approved medium. Its material must be compatible with the fluid and suitable for the expected operating temperature.
Reinforcement Layer
Reinforcement provides the hose with its pressure-bearing capability.
Depending on the application, reinforcement may include:
- Textile materials
- Steel-wire braid
- Multiple braided layers
- Spiral-wire reinforcement
High-pressure applications generally require stronger reinforcement structures.
Outer Cover
The outer cover protects internal reinforcement from environmental exposure, abrasion and mechanical contact.
Each layer has a specific purpose, which is why selecting a hose purely by its external appearance is never advisable.
What Makes a Drilling Hose Different?
A drilling hose is designed for specific fluid-transfer applications within drilling operations.
The hose may need to accommodate movement and vibration while handling drilling media under demanding conditions. These operating requirements can be considerably different from those of general-purpose industrial hoses.
Typical challenges include:
- High working pressures
- Large fluid-flow requirements
- Abrasive environments
- Continuous vibration
- Dynamic movement
- Outdoor weather exposure
- Temperature variations
For this reason, the hose specification should always reflect the actual operating conditions.
Hydraulic Hose vs Drilling Hose
Understanding the differences can prevent incorrect product selection.
| Factor | Hydraulic Hose | Drilling Hose |
| Primary use | Hydraulic power systems | Drilling fluid systems |
| Typical medium | Hydraulic fluid | Specified drilling fluids |
| Equipment | Industrial/mobile machinery | Drilling equipment |
| Movement | Machine articulation | Dynamic rig movement |
| Reinforcement | Textile, braid or spiral | Heavy-duty reinforced construction |
| Key considerations | Pressure, fluid, temperature | Pressure, flow, fluid, movement |
While there may be similarities in construction, the products should not automatically be considered interchangeable.
What to Look for in a Hydraulic Hose Manufacturer
Choosing a Hydraulic Hose Manufacturer should involve more than requesting a price quotation.
A good supplier should understand the technical requirements of the application and be able to provide relevant product information.
Consider the following factors:
- Manufacturing experience
- Quality-control procedures
- Pressure-testing capabilities
- Product traceability
- Hose and fitting compatibility
- Material selection expertise
- Custom manufacturing capabilities
- Technical documentation
- Application support
- Relevant industry standards
The ability to explain why a particular hose is suitable for an application can be as valuable as the product itself.
Why Working Pressure Deserves Careful Attention
Pressure rating is one of the first specifications buyers should examine.
The hose must have a suitable working-pressure rating for the intended system. Pressure spikes and changing operating conditions should also be considered during system engineering.
Working pressure should never be confused with burst pressure.
Burst pressure refers to destructive testing conditions. It is not the pressure at which the hose should normally operate.
When sourcing a drilling hose, provide the manufacturer with accurate operating-pressure information rather than selecting a hose based solely on its maximum test values.
Fluid Compatibility Can Affect Hose Performance
Not every hose material is compatible with every fluid.
The inner tube is continuously exposed to the conveyed medium, making compatibility an important part of hose selection.
Depending on the application, manufacturers may need information about:
- Hydraulic oil
- Water-based drilling fluids
- Oil-based drilling fluids
- Chemical additives
- Fluid concentration
- Operating temperature
Using an unsuitable hose material may result in swelling, softening, hardening or other forms of deterioration.
Why Hose Size Is More Than a Diameter Measurement
Hose diameter affects fluid movement through the system.
A hose that is too small may increase fluid velocity and pressure losses. An unnecessarily large hose can increase weight, cost and installation requirements.
For a drilling hose, where substantial fluid volumes may be involved, correct sizing becomes especially important.
A knowledgeable Hydraulic Hose Manufacturer can help buyers evaluate hose size alongside pressure and flow requirements.
Installation Can Determine Long-Term Performance
Even a correctly manufactured hose can experience problems when installed poorly.
Some of the most common installation issues include:
- Sharp bending
- Twisting
- Excessive tension
- Abrasion against equipment
- Incorrect hose length
- Poor fitting alignment
- Exposure to unnecessary heat
The manufacturer’s specified minimum bend radius should always be considered.
Why Bend Radius Matters
A flexible hose still has physical bending limits. Bending below the specified minimum radius can place additional stress on the hose structure.
For a drilling hose that moves during operation, sufficient length and correct routing are particularly important.
Testing Helps Build Confidence in Hose Quality
A professional Hydraulic Hose Manufacturer may use various tests depending on the product specification.
Pressure Testing
Pressure testing can help verify the integrity of the finished hose or assembly under specified test conditions.
Impulse Testing
Hydraulic hoses often experience repeated pressure cycles. Impulse testing evaluates their response to controlled cyclic loading.
Burst Testing
Burst testing measures hose behaviour as pressure is increased to failure under defined laboratory conditions.
Visual Inspection
Manufacturers can also inspect dimensions, external surfaces, markings, fittings and assembly quality.
When Should Hydraulic and Drilling Hoses Be Inspected?
Hydraulic hoses should be included in preventive maintenance programmes.
Regular inspections can identify visible signs of deterioration before they become more serious.
Watch for:
- Cracked outer covers
- Fluid leakage
- Severe abrasion
- Exposed reinforcement
- Bulges
- Flattening
- Kinks
- Damaged fittings
A visibly damaged drilling hose should be evaluated according to manufacturer recommendations and relevant maintenance procedures.
Why Custom Hydraulic Hose Assemblies Are Increasingly Useful
Modern machinery does not always accommodate standard hose configurations.
A Hydraulic Hose Manufacturer may provide custom assemblies according to:
- Required hose length
- Inside diameter
- Pressure requirements
- Fitting types
- Connection orientation
- Reinforcement construction
- Protective cover requirements
Customisation is especially useful where equipment geometry, restricted installation space or movement creates unusual routing requirements.
Frequently Asked Questions About Hydraulic and Drilling Hoses
1. What does a Hydraulic Hose Manufacturer do?
A Hydraulic Hose Manufacturer develops flexible reinforced hoses for transferring pressurised fluids in industrial and mobile machinery.
2. What is a drilling hose used for?
A drilling hose provides a flexible connection for transferring specified fluids within drilling equipment.
3. Can a standard hydraulic hose be used as a drilling hose?
Not automatically. Pressure, fluid, flow, dimensions, movement and relevant specifications must all be considered.
4. What is the most important hydraulic hose specification?
There is no single specification. Pressure, temperature, fluid compatibility, size, fittings and routing must be considered together.
5. Why do hydraulic hoses use steel reinforcement?
Steel reinforcement provides structural strength to help the hose contain high internal pressures.
6. What is working pressure?
Working pressure is the specified pressure limit for normal hose operation under defined conditions.
7. Is burst pressure the same as working pressure?
No. Burst pressure relates to destructive testing and should not be used as a normal operating rating.
8. Why is drilling hose routing important?
Correct routing helps prevent excessive bending, twisting, abrasion and tension during equipment movement.
9. Can drilling hoses handle abrasive fluids?
Only hoses specifically designed and specified for the intended medium should be used.
10. Can hydraulic hose assemblies be customised?
Yes. Manufacturers may offer customised hose dimensions, fittings and configurations for particular applications.
