Construction sites depend on equipment that can move materials efficiently, withstand demanding working conditions and maintain consistent performance throughout the job. A Concrete Pump Hose is a critical part of this system, providing the flexible connection needed to deliver pumped concrete to the required placement point.
Choosing a hose is not simply a matter of matching its diameter to a pump. Working pressure, concrete composition, abrasion resistance, hose construction, fittings, bend requirements and site conditions all affect performance and service life.
This guide explains how concrete pumping hoses work, the features buyers should evaluate, common selection mistakes and how they differ from other high-pressure products such as a Pressure Washer Hose.
What Is a Concrete Pump Hose?
A Concrete Pump Hose is a heavy-duty flexible hose designed to transport concrete from pumping equipment towards the point where the material is discharged and placed.
It is commonly used as part of a concrete delivery system on construction projects where direct access by a mixer or other equipment is difficult. Depending on the pumping system, the hose may be connected to pipelines, booms or other concrete conveying components.
A suitable hose must cope with several demanding conditions at the same time:
· Internal pumping pressure
· Continuous movement of abrasive material
· Bending and repositioning on site
· Repeated operating cycles
· Outdoor construction environments
· Heavy handling and mechanical stresses
Because concrete is considerably more abrasive than water, the internal tube and reinforcement structure are particularly important.
Suggested internal link: Explore industrial hose solutions
How Does a Concrete Pump Hose Work?
A concrete pump creates the force needed to move fresh concrete through a delivery system. The hose provides a flexible section of that route, particularly where rigid pipework would make placement difficult.
Concrete enters the hose under pressure and travels through its reinforced inner passage before being discharged at the required location.
The hose therefore needs to combine three important properties: pressure resistance, abrasion resistance and flexibility.
If any of these characteristics are unsuitable for the application, operators may experience premature wear, leakage, restricted material flow or other performance and safety concerns.
What Are the Key Features of a Quality Concrete Pump Hose?
The best hose is one that is correctly specified for the actual pumping application rather than simply the most expensive or heavily reinforced option.
Abrasion-Resistant Inner Tube
Wet concrete contains aggregates and other materials that can progressively wear the inside of a hose.
A durable inner tube helps resist this abrasion and supports a longer usable service life under appropriate operating conditions.
Strong Reinforcement
Reinforcement enables the hose to withstand its specified operating pressure. Depending on the design and application, different reinforcement constructions may be used.
Always check the manufacturer’s documented working-pressure specification rather than assuming that visually similar hoses have equivalent capabilities.
Durable Outer Cover
The outside of the hose can experience dragging, impact, weather exposure and general construction-site wear.
A robust outer cover helps protect the reinforcement underneath from external damage.
Appropriate Flexibility
A hose needs sufficient flexibility for practical concrete placement while maintaining its structural integrity.
Excessively tight bending should be avoided because operating below the manufacturer’s minimum bend radius can place unnecessary stress on the hose.
Compatible Hose Fittings
Couplings and fittings should be compatible with the hose, pumping equipment and intended pressure conditions.
Connections should always be installed and inspected according to the manufacturer’s recommendations.
What Should You Consider Before Buying a Concrete Pump Hose?
Before purchasing, define the application clearly. The following factors can significantly affect suitability:
| Selection Factor | Why It Matters |
| Internal diameter | Influences concrete flow and compatibility |
| Working pressure | Must suit the pumping system |
| Hose length | Affects placement flexibility and handling |
| Abrasion resistance | Important for demanding concrete mixtures |
| Reinforcement | Supports pressure capability |
| Minimum bend radius | Determines practical routing |
| Coupling compatibility | Helps ensure secure system connections |
| Outer-cover durability | Protects against external site conditions |
| Temperature range | Must suit expected operating conditions |
| Manufacturer documentation | Helps verify technical suitability |
Buyers should provide suppliers with accurate operating information instead of selecting a product from diameter and price alone.
Suggested internal link: View high-pressure hose specifications
Why Is Abrasion Resistance Important?
Abrasion resistance is particularly important because concrete continuously contacts the internal surface as it moves through the hose.
Aggregate size, concrete composition, pumping volume, pressure, flow characteristics and frequency of operation can all influence wear.
For projects involving frequent concrete pumping, selecting a hose specifically designed for abrasive media can be more economical than repeatedly replacing unsuitable general-purpose hoses.
Regular inspection remains necessary even when a highly abrasion-resistant product is used.

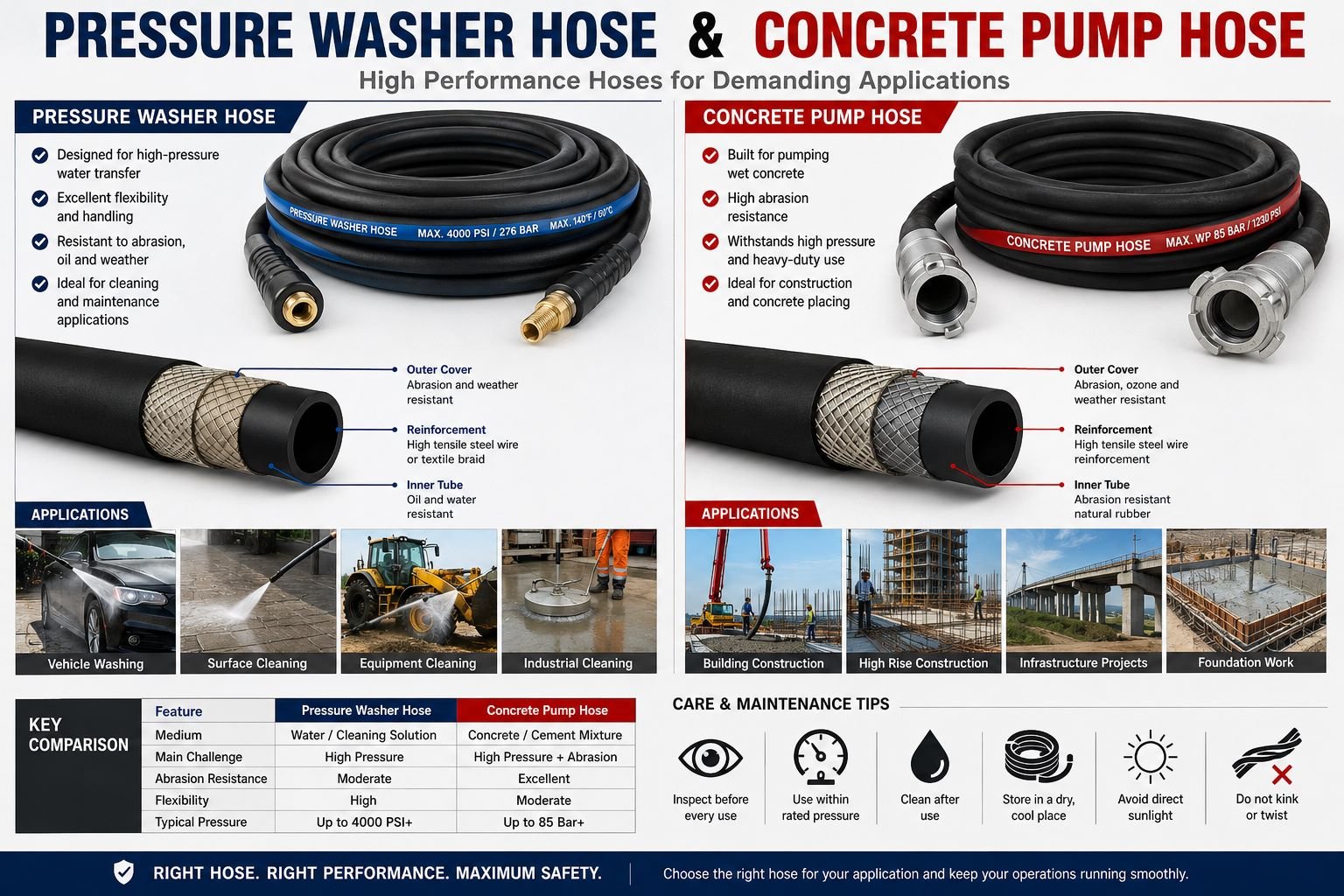

Concrete Pump Hose vs Pressure Washer Hose: What Is the Difference?
A Concrete Pump Hose and Pressure Washer Hose can both operate in pressurised systems, but they are engineered for very different media and operating environments.
| Feature | Concrete Pump Hose | Pressure Washer Hose |
| Main application | Pumping wet concrete | Carrying pressurised water |
| Conveyed medium | Concrete and aggregate mixture | Water/cleaning solution, as specified |
| Key design concern | Abrasion and pumping pressure | Pressure, temperature and fluid compatibility |
| Typical environment | Construction and concrete placement | Industrial, commercial or domestic cleaning |
| Internal design | Intended for abrasive material | Intended for compatible cleaning fluids |
| Selection basis | Concrete system specifications | Washer pressure, temperature and fittings |
A Pressure Washer Hose should not be substituted for a concrete pumping hose merely because its pressure rating appears high.
Pressure rating is only one element of hose design. Material compatibility, internal construction, reinforcement, fittings and resistance to the conveyed medium must also be considered.
How Do You Choose a Pressure Washer Hose?
A Pressure Washer Hose should be selected according to the pressure washer’s operating requirements and the manufacturer’s specifications.
Important factors include:
· Maximum permitted working pressure
· Water temperature
· Hose length
· Internal diameter
· Reinforcement construction
· Fitting and thread compatibility
· Kink and abrasion resistance
· Chemical compatibility where cleaning agents are used
For commercial cleaning applications, hose flexibility and external abrasion resistance may also influence productivity because the hose is frequently moved across floors, yards and equipment.
Suggested internal link: Browse pressure washer and cleaning hoses
Common Mistakes When Selecting Concrete Pump Hoses
One frequent mistake is purchasing primarily on price. A low initial cost offers little value if the hose is technically unsuitable for the pumping system.
Another mistake is focusing only on pressure rating. Concrete pumping involves abrasive media, movement and demanding physical conditions, so pressure alone does not determine suitability.
Other issues include using incompatible couplings, ignoring minimum bend-radius requirements, failing to check manufacturer specifications and continuing to use visibly damaged hoses.
The correct approach is to evaluate the complete application before selecting the product.
How Long Does a Concrete Pump Hose Last?
There is no universal service-life figure for a Concrete Pump Hose. Its lifespan depends on the hose design, concrete mixture, operating pressure, pumping frequency, handling practices, cleaning procedures and overall site conditions.
Inspection should therefore be based on condition and manufacturer guidance rather than relying solely on a predetermined number of months or operating hours.
Signs requiring attention can include unusual deformation, excessive external abrasion, damaged reinforcement, leaking connections or deterioration around hose ends.
Where there is uncertainty about a hose’s condition, it should be assessed by a competent person before further operation.
What Affects Concrete Pump Hose Price?
The cost of a concrete pumping hose depends on its technical specification rather than diameter alone.
Pricing can vary according to:
· Hose size and length
· Reinforcement construction
· Working-pressure specification
· Inner-tube material
· Abrasion-resistant properties
· Outer-cover construction
· Coupling and fitting requirements
· Quantity ordered
· Manufacturer and product specification
· Local availability and delivery requirements
For commercial buyers, total operating value can be more useful than simply comparing unit prices. Product suitability, expected wear, downtime, replacement requirements and supplier support should all form part of the purchasing decision.
For an accurate quotation, provide the supplier with the required diameter, length, pressure, application, connection type and quantity.
Practical Example: Selecting a Hose for a Construction Project
Consider a contractor who needs a flexible end hose for regular concrete placement.
Instead of requesting only a particular diameter, the contractor should provide information about the pumping equipment, required hose length, operating pressure, concrete characteristics, connection requirements and working environment.
The supplier can then match these requirements against documented product specifications.
The same principle applies when sourcing a Pressure Washer Hose. Providing the machine pressure, temperature, connection type, required length and cleaning environment reduces the likelihood of purchasing an incompatible product.
How Can You Extend Hose Service Life?
Correct operation and maintenance can help reduce unnecessary wear.
Follow the hose and equipment manufacturer’s instructions for installation, operation, cleaning, inspection and replacement. Avoid excessive bending, crushing, dragging over sharp surfaces and using a hose outside its specified pressure or temperature limits.
Connections should also be inspected because the hose assembly is only as dependable as its individual components.
Never attempt improvised repairs to pressure-bearing components unless the repair method is explicitly permitted by the manufacturer and performed by appropriately qualified personnel.
How Do You Find a Concrete Pump Hose Supplier Near You?
When searching locally, look beyond the phrase Concrete Pump Hose near me and evaluate whether the supplier can provide appropriate technical information and product support.
A knowledgeable supplier should be able to discuss application requirements such as diameter, working pressure, hose construction, fittings, length and media compatibility.
For contractors and industrial buyers, local availability can also be valuable when replacement hoses, fittings or technical assistance are required quickly.
Suggested internal link: Contact our industrial hose specialists
Questions to Ask a Supplier Before Ordering
Before placing an order, confirm:
1. Is this hose specifically suitable for concrete pumping?
2. What is its rated working pressure?
3. What reinforcement construction is used?
4. What are the available internal diameters?
5. What is the specified minimum bend radius?
6. Which couplings are compatible?
7. What operating-temperature range applies?
8. What inspection and maintenance guidance is provided?
9. Are technical datasheets available?
10. Can the supplier recommend the correct configuration for the intended equipment?
These questions make it easier to compare products on technical suitability rather than price alone.
Frequently Asked Questions
What is a Concrete Pump Hose used for?
A Concrete Pump Hose provides a flexible route for transferring pumped concrete through a delivery system to the required placement area on a construction site.
Can any high-pressure hose be used for concrete pumping?
No. A hose must be specifically suitable for concrete, the required operating pressure, abrasive media and the relevant pumping equipment.
What size Concrete Pump Hose should I buy?
The correct size depends on the pumping equipment, concrete mixture, required flow and system configuration. Follow equipment and hose manufacturer recommendations.
Is a Concrete Pump Hose abrasion resistant?
Hoses designed specifically for concrete pumping generally incorporate an inner tube intended to resist abrasive material, although performance varies by product specification.
What is the difference between working pressure and burst pressure?
Working pressure refers to the pressure for which a hose is rated during normal operation under specified conditions. Burst pressure is not a recommended operating pressure.
Can a Pressure Washer Hose be used for concrete?
A Pressure Washer Hose is generally designed for pressurised water or compatible cleaning fluids, not abrasive concrete. Use a hose specifically approved for the intended medium and application.
What makes a good Pressure Washer Hose?
Suitable pressure and temperature ratings, compatible fittings, appropriate reinforcement, flexibility and resistance to external wear are important characteristics.
When should a concrete hose be replaced?
Replacement may be necessary when inspection identifies deterioration, excessive wear, exposed or damaged reinforcement, deformation, leakage or other conditions outside manufacturer guidance.
Are concrete pumping hoses available in different lengths?
Yes. Availability depends on the manufacturer and supplier. Select length according to the pumping system and placement requirements rather than choosing unnecessary extra length.
How should I compare Concrete Pump Hose prices?
Compare products with equivalent technical specifications, including size, working pressure, reinforcement, abrasion resistance, fittings and construction. Price alone does not establish suitability.
