Plastic manufacturing has evolved significantly as industries demand stronger materials, better consistency, greater production efficiency, and more specialized polymer formulations. At the center of many of these manufacturing processes is extrusion technology.
From everyday plastic products to sophisticated engineering compounds, extrusion provides manufacturers with a continuous method for transforming raw materials into usable forms. Two technologies frequently encountered in this field are the Twin Extruder and Single Extruder.
While their names highlight the obvious difference—two screws versus one—the practical distinction goes much deeper. Each technology creates a different processing environment, and understanding those differences is increasingly important as polymer formulations become more complex.
Why Extrusion Remains Essential to Plastic Manufacturing
Extrusion is essentially a continuous material-processing technique. Raw materials enter an extruder, move through a controlled barrel, and are transformed through a combination of heat, mechanical energy, pressure, and screw movement.
The processed material eventually leaves through a die or moves into another downstream operation.
What makes extrusion particularly useful is its adaptability. Manufacturers use extrusion technology for products and materials including:
- Plastic pipes and profiles
- Films and sheets
- Wire and cable coatings
- Polymer compounds
- Color masterbatch
- Engineering plastics
- Recycled polymer materials
- Filled and reinforced compounds
However, these products do not all require the same processing conditions. This is one reason different extruder configurations have developed.
Where the Single Extruder Fits Into Modern Production
A Single Extruder uses one rotating screw inside a barrel to transport and process material.
Raw material normally enters through a hopper before being carried forward by the screw. As it moves through the barrel, the combination of external heating and mechanical energy helps soften or melt the polymer.
The processed melt is then delivered toward the die under controlled pressure.
This comparatively straightforward configuration has made single-screw technology an established part of plastics manufacturing.
It is particularly useful where manufacturers need stable continuous processing rather than highly intensive ingredient mixing.
Pipe, profile, film, sheet, tubing, and coating operations are among the areas where single-screw systems can be found.
Why Twin Extrusion Has Become Important for Compounding
Modern polymers often contain more than one ingredient.
A formulation may combine base resin with pigments, mineral fillers, reinforcing fibers, stabilizers, processing aids, impact modifiers, or other functional ingredients.
The challenge is not simply feeding these components into a machine. They need to be distributed appropriately throughout the material.
A Twin Extruder uses two screws, creating greater opportunities for controlled mixing and material movement.
Depending on the machine configuration, engineers can arrange different screw elements to perform specific functions during processing.
These can include conveying, kneading, dispersing, homogenizing, venting, and pressure development.
This flexibility explains why twin-screw extrusion has become closely associated with polymer compounding.
Mixing Is Becoming More Important Than Ever
Plastic products are becoming increasingly performance-oriented.
Manufacturers may need a compound to deliver specific mechanical strength, appearance, processability, thermal characteristics, or other functional properties.
Achieving those properties depends partly on how effectively the formulation ingredients are incorporated.
Consider a colored polymer compound. If pigment is distributed inconsistently, visible color variations may occur.
A reinforced compound presents another challenge. Fibers and additives must be introduced and processed under conditions suitable for the intended formulation.
A Twin Extruder can offer substantial control in these situations because different sections of the screws can be configured around particular processing requirements.
A Single Extruder, meanwhile, remains highly useful when the material is already compounded and primarily needs controlled melting, conveying, and shaping.
One Screw Versus Two Is Not the Entire Story
Comparing extrusion technologies solely according to screw count can be misleading.
The practical differences involve how materials behave inside the processing system.

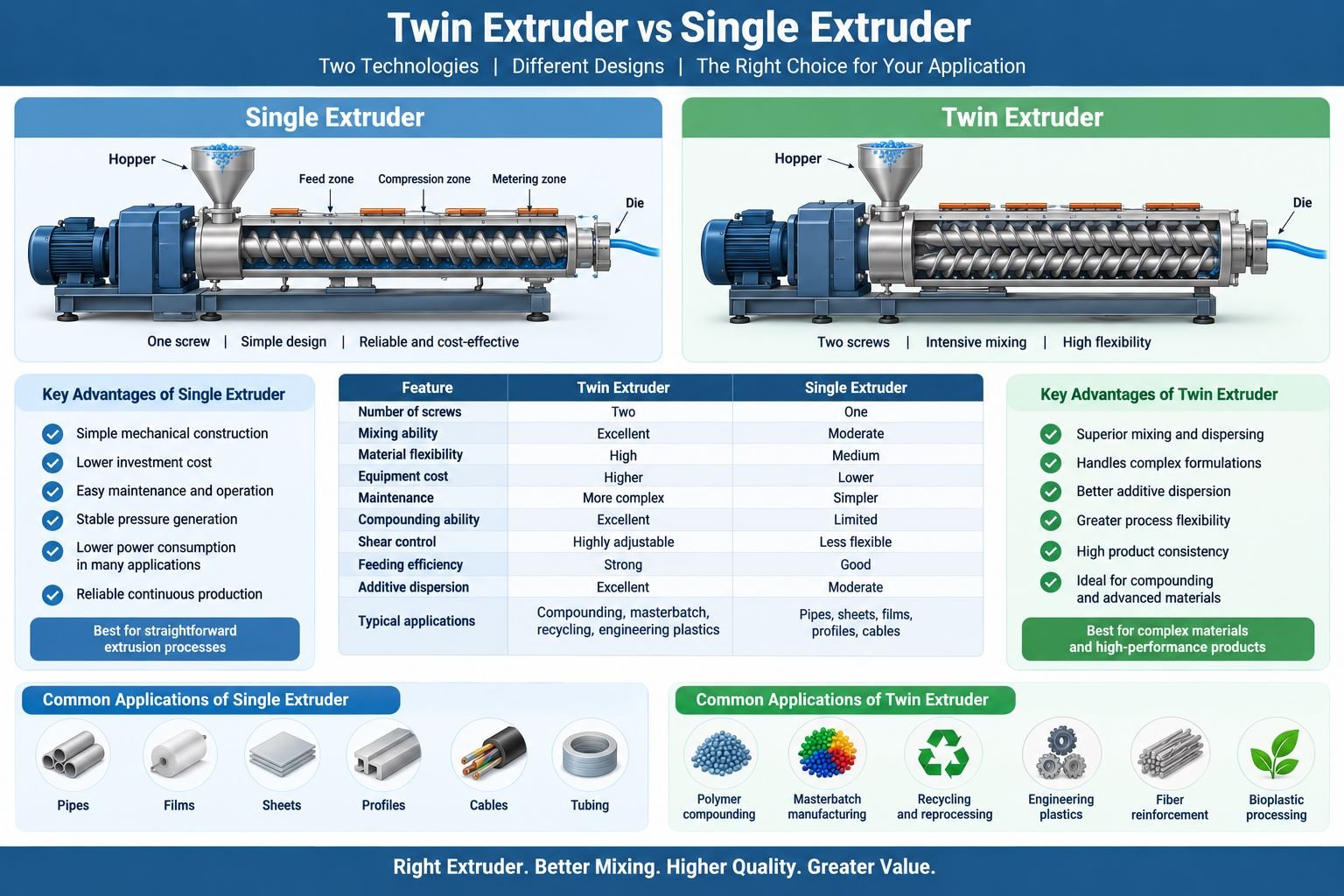

| Consideration | Single Extruder | Twin Extruder |
| Screw arrangement | One screw | Two screws |
| Conventional extrusion | Widely used | Application dependent |
| Complex compounding | More limited | Widely used |
| Mixing flexibility | Moderate | Extensive |
| Mechanical complexity | Lower | Higher |
| Maintenance requirements | Generally simpler | More involved |
| Initial investment | Usually lower | Usually higher |
| Typical focus | Continuous extrusion | Mixing and compounding |
The exact performance of any machine still depends on its design, screw geometry, operating parameters, material formulation, and downstream equipment.
The Growing Role of Extrusion in Plastic Recycling
Sustainability is creating new challenges for polymer processors.
Recycled materials can behave differently from uniform virgin resin. Feedstock may contain varying particle sizes, moisture levels, contaminants, additives, or mixtures of materials.
Extrusion can form an important part of recycling operations by helping process prepared plastic material into reusable compounds or pellets.
A recycling line may include several stages:
- Material sorting
- Size reduction
- Washing
- Drying
- Controlled feeding
- Extrusion
- Melt filtration
- Degassing where required
- Pelletizing
Depending on the material and final objective, both Twin Extruder and Single Extruder technologies can have roles in recycling processes.
This makes material testing particularly important when manufacturers plan to process recycled feedstock.
Why Production Output Should Not Be the Only Priority
When purchasing extrusion equipment, maximum kilograms per hour can easily become the headline specification.
But theoretical output alone provides an incomplete picture of production performance.
A productive extrusion line should deliver consistent material quality while minimizing scrap, unnecessary energy consumption, maintenance interruptions, and production instability.
Manufacturers should therefore consider:
- Stable usable output
- Product consistency
- Energy requirements
- Changeover time
- Material losses
- Equipment wear
- Maintenance requirements
- Operator requirements
- Downtime
A machine that delivers predictable production at a controlled rate can provide greater long-term value than one operated continuously at its maximum theoretical capacity.
Choosing Extrusion Equipment Around the Material
A useful equipment-selection process begins by documenting the material.
Manufacturers should understand whether the feedstock consists of pellets, powders, flakes, fibers, liquids, or combinations of these materials.
Other important characteristics include moisture sensitivity, bulk density, abrasiveness, filler concentration, temperature sensitivity, and required processing conditions.
The next consideration should be the finished product.
A manufacturer producing standard profiles has very different requirements from a business developing high-filled engineering compounds.
These differences should determine whether the additional processing flexibility of a Twin Extruder is necessary or whether a Single Extruder provides a more appropriate solution.
Operating Costs Deserve Long-Term Attention
Extrusion machinery is normally a long-term industrial investment.
The initial purchase price should therefore be evaluated alongside operating expenses.
Energy consumption, labor, heaters, cooling systems, replacement screws, barrels, gearbox maintenance, feeders, dies, and production downtime all contribute to the real cost of manufacturing.
Single-screw systems generally provide simpler mechanical construction. Twin-screw systems introduce additional complexity but can provide processing capabilities that are essential for sophisticated formulations.
The economically appropriate choice is therefore the machine that accomplishes the required processing task reliably rather than simply the equipment with the lowest purchase price.
Future Polymer Trends Will Influence Extrusion Technology
Polymer manufacturing continues to change.
Growing interest in recycled materials, lightweight compounds, specialized additives, reinforced polymers, and application-specific formulations means processors increasingly need adaptable production technologies.
At the same time, manufacturers continue to demand lower energy consumption, better process monitoring, reduced waste, and more consistent product quality.
Both Single Extruder and Twin Extruder technology will continue to play important roles in this environment.
Rather than replacing one another, the two technologies address different processing requirements.
Frequently Asked Questions
1. What is the basic purpose of an extruder?
An extruder continuously conveys and processes suitable raw materials before delivering them through a die or into subsequent processing equipment.
2. How does a Single Extruder work?
It uses one rotating screw to convey, melt, homogenize, and pressurize material inside a barrel.
3. Why does a Twin Extruder have two screws?
Two screws provide additional possibilities for material conveying, mixing, dispersion, and processing control.
4. Which technology is commonly associated with polymer compounding?
Twin-screw extrusion is widely used for many polymer compounding applications.
5. Can Single Extruders process plastic pipes?
Yes. Single-screw systems are commonly used for suitable thermoplastic pipe extrusion.
6. Can extrusion be used for recycled plastics?
Yes. Extrusion is used in many recycling processes, although equipment requirements depend on the feedstock.
7. Why is mixing important in polymer production?
Proper mixing helps distribute pigments, fillers, additives, and other ingredients throughout the polymer.
8. Does machine size determine extrusion quality?
No. Machine configuration, raw materials, process parameters, maintenance, and operator control all influence quality.
9. Is a Twin Extruder always necessary for additives?
Not necessarily. The required technology depends on formulation complexity and the degree of mixing or dispersion required.
10. What should manufacturers consider before buying an extruder?
They should examine materials, capacity, formulation complexity, quality requirements, operating costs, maintenance, downstream equipment, and future production plans.
