Advanced manufacturing is placing new pressure on the materials used inside furnaces, vacuum systems, semiconductor equipment and research facilities. Components are increasingly expected to withstand severe temperatures while maintaining electrical insulation, dimensional stability and process cleanliness.

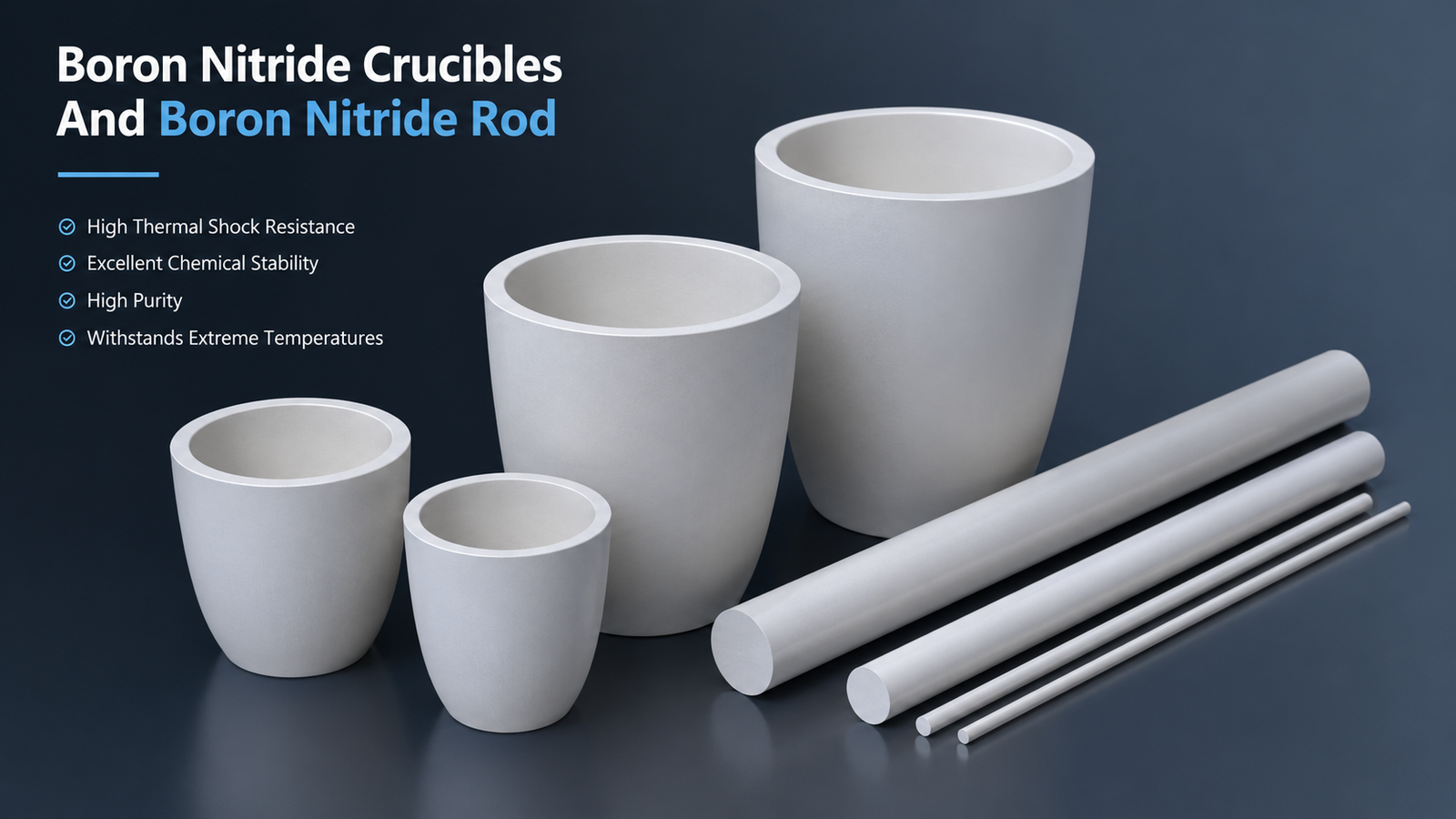

Against this backdrop, Boron Nitride Crucibles and Boron Nitride Rod are attracting interest as industries search for technical ceramics capable of supporting increasingly complex thermal processes.
Boron nitride is particularly notable because it combines characteristics that are difficult to achieve simultaneously with conventional engineering materials. Its thermal performance, electrical insulation and machinability have positioned it as an important material for specialised industrial environments.
Industrial Processes Are Creating Tougher Material Requirements
High-temperature engineering is no longer simply about finding materials that do not melt.
Modern processing equipment can expose components to rapid temperature changes, vacuum conditions, electrical fields and contact with molten or sensitive materials. Contamination control can be equally important, particularly in semiconductor and advanced materials applications.
These operating conditions are changing how engineers approach material selection.
Boron nitride can offer a useful combination of:
- High-temperature stability under appropriate conditions
- Electrical insulation
- Low thermal expansion
- Good thermal-shock resistance
- Useful thermal conductivity
- Low-friction characteristics
- Machinability
- Chemical stability in many environments
This combination has opened opportunities for BN in areas where multiple performance requirements must be addressed together.
Boron Nitride Crucibles Move Beyond Conventional Material Containment
The crucible is one of the most critical components in many thermal processes. Although its basic purpose is to contain material during heating, its influence can extend much further.
An unsuitable crucible can potentially interact with the processed material, introduce impurities or become damaged during repeated heating and cooling.
Boron Nitride Crucibles offer an alternative for selected demanding applications. Their thermal characteristics make them suitable for environments involving substantial temperature changes, while the non-wetting nature of BN can be beneficial when processing compatible molten materials.
Applications may include:
- High-temperature laboratory research
- Vacuum evaporation
- Crystal growth
- Molten-metal processing
- Semiconductor operations
- Specialised alloy development
- Materials science
- Controlled-atmosphere furnaces
Actual performance depends strongly on BN grade, temperature, atmosphere and chemical exposure.
Thermal Cycling Puts Crucible Performance Under the Spotlight
One of the biggest challenges in thermal processing occurs not at a constant temperature but during heating and cooling.
Different sections of a component can expand or contract at different rates, generating internal stress. Repeated cycles can eventually cause damage in unsuitable materials.
The low thermal expansion and thermal-shock resistance associated with boron nitride make Boron Nitride Crucibles particularly interesting for processes involving frequent temperature changes.
This can be important in laboratories and manufacturing facilities where equipment operates through multiple thermal cycles each day.
Boron Nitride Rod Addresses the Need for Custom Ceramic Parts
Another development influencing advanced manufacturing is the move towards application-specific components.
Equipment manufacturers increasingly require ceramic parts with precise dimensions, holes, channels, grooves and other specialised features. Standard components may not always meet these requirements.
Boron Nitride Rod provides a practical starting material for such designs.
Instead of being limited to predetermined ceramic shapes, engineers can machine suitable BN rod into components such as:
- Electrical insulators
- Furnace spacers
- Ceramic sleeves
- Nozzles
- Bushings
- Thermal fixtures
- Supports
- Positioning parts
- Custom research components
This makes BN rod particularly relevant for prototypes, specialised equipment and relatively low-volume precision components.
Machinability Changes the Design Possibilities
Advanced ceramics are often associated with difficult machining. Their hardness and brittleness can make detailed manufacturing complicated.
Boron nitride presents a different opportunity.
Suitable grades of Boron Nitride Rod can be machined using carefully selected conventional techniques. This provides engineers with greater freedom when designing customised ceramic components.
Important Factors During Machining
Successful machining depends on controlling several factors:
- Tool sharpness
- Cutting force
- Feed conditions
- Component support
- Wall thickness
- Edge geometry
- Dust management
- Required tolerances
Ceramic Handling Still Requires Care
Machinability does not mean BN should be treated like a conventional metal. Excessive mechanical pressure can damage delicate features. Appropriate machining recommendations should always be followed for the specific grade.
Comparing Boron Nitride Crucibles and Boron Nitride Rod
| Feature | Boron Nitride Crucibles | Boron Nitride Rod |
| Main role | Thermal material containment | Custom ceramic manufacturing |
| Standard form | Cup or container | Cylindrical stock |
| Key strength | High-temperature processing | Design flexibility |
| Typical application | Melting and evaporation | Insulators and furnace parts |
| Custom options | Diameter, depth and shape | Grooves, holes and profiles |
| Main users | Laboratories, metallurgy | Equipment manufacturers |
Although their functions differ, both forms demonstrate how BN can be adapted to highly specialised engineering requirements.
Semiconductor Technology Creates Opportunities for BN Components
Semiconductor manufacturing continues to push material requirements towards greater precision and process control.
Components operating within semiconductor equipment may require electrical isolation while being exposed to elevated temperatures. Material purity and dimensional stability can also become significant considerations.
This creates potential applications for both Boron Nitride Crucibles and machined BN components.
The same combination of properties can also benefit vacuum technology, electronics manufacturing, experimental furnaces and advanced research systems.
Grade Selection Emerges as a Critical Purchasing Decision
Greater adoption of BN is also highlighting an important point: boron nitride is not a single universal material specification.
Different grades can contain different additives and possess different levels of purity, density, strength, machinability and environmental resistance.
Engineers evaluating BN should therefore examine:
- Temperature range
- Operating atmosphere
- Vacuum level
- Chemical contact
- Purity requirements
- Electrical requirements
- Thermal cycling
- Mechanical forces
- Component dimensions
- Manufacturing tolerances
A grade performing effectively in an inert atmosphere may have different limitations when exposed to air at elevated temperatures.
Frequently Asked Questions
Why are Boron Nitride Crucibles receiving industrial attention?
They combine high-temperature capability with thermal-shock resistance, electrical insulation and useful non-wetting characteristics.
What is Boron Nitride Rod mainly used for?
BN rod is commonly used as machinable ceramic stock for producing customised technical components.
Can boron nitride work at high temperatures?
Yes, suitable grades are designed for high-temperature applications, although actual limits depend heavily on atmosphere and material composition.
Is boron nitride electrically conductive?
Hexagonal boron nitride is generally an electrical insulator.
Can BN rod be precision machined?
Suitable grades can be machined into detailed geometries when appropriate tooling and machining methods are used.
What industries use Boron Nitride Crucibles?
Potential users include metallurgy, semiconductor manufacturing, vacuum technology, laboratories and materials-research organisations.
Why is thermal-shock resistance important?
It helps components tolerate rapid temperature changes without developing excessive thermal stress.
Can BN crucibles be customised?
Yes. Crucibles can be manufactured in different dimensions and specialised geometries depending on manufacturing capabilities.
Are all BN rods the same?
No. Composition, additives, purity and physical characteristics can vary between material grades.
What should engineers check before choosing BN?
They should consider temperature, atmosphere, chemical compatibility, purity, electrical requirements, geometry and mechanical conditions.
