Reliable internet access is no longer limited to locations with fibre or fixed broadband infrastructure. Businesses, remote offices, retail stores, homes, construction sites, security systems, and industrial facilities increasingly depend on mobile networks for dependable connectivity. A 4G router with Ethernet offers the convenience of cellular internet while supporting wired devices, whereas a 4G router with external antenna can improve signal reception in locations where standard indoor mobile coverage is weak.
Understanding the capabilities of these routers can help users select a solution that delivers better stability, flexibility, and network performance.
What Is a 4G Router with Ethernet?
A 4G router with Ethernet connects to a 4G LTE mobile network through a SIM card and distributes internet connectivity to devices through Ethernet ports, Wi-Fi, or both.
Unlike a smartphone hotspot, a dedicated router is designed for continuous network operation. Ethernet connectivity is especially useful for equipment requiring stable wired communication.
Typical connected devices include:
- Desktop computers and workstations
- CCTV cameras and NVR systems
- Point-of-sale terminals
- Smart televisions
- Industrial controllers
- Network switches
- VoIP equipment
- Digital signage systems
Ethernet connections can also reduce dependence on wireless signals inside environments where walls, machinery, interference, or distance may affect Wi-Fi performance.
How Does a 4G Router with External Antenna Work?
A 4G router with external antenna uses one or more detachable or permanently connected antennas to receive cellular signals from nearby mobile towers.
The router converts the LTE cellular connection into a local network that devices can access through Wi-Fi or Ethernet.
External antennas are particularly useful where the router is installed:
- Inside warehouses or factories
- In rural properties
- Inside metal structures
- In underground facilities
- At construction locations
- In temporary offices
- In vehicles or mobile installations
A suitable antenna can be positioned where cellular reception is stronger instead of requiring the entire router to be relocated.
Why Ethernet Connectivity Matters
Although Wi-Fi provides convenience, wired Ethernet remains important in professional networking applications.
More Stable Device Connections
Ethernet avoids many common wireless problems caused by interference, obstacles, competing networks, and excessive distance from the access point.
For applications such as video surveillance, payment terminals, automation systems, and business computers, connection consistency can be more important than mobility.
Easy Integration with Existing Networks
A 4G router with Ethernet can connect directly to a network switch. This allows several wired devices to share the same mobile broadband connection.
Suitable for Fixed Equipment
Many industrial and commercial devices do not include Wi-Fi. Ethernet therefore provides a straightforward way to connect existing equipment to a 4G network.
Practical Example
Consider a temporary construction office without fixed broadband. A 4G router can use a SIM card for internet access while Ethernet ports connect desktop computers, security equipment, and a network printer.
Benefits of Using an External Antenna
Cellular performance depends heavily on signal quality. Buildings, terrain, distance from towers, and physical obstructions can weaken LTE reception.
A 4G router with external antenna provides greater flexibility because the antenna can potentially be placed in a more favourable location.
Depending on the equipment and installation, users may benefit from improved signal consistency, reduced connection interruptions, and more reliable communication with the mobile network.
However, an external antenna cannot create network capacity that does not exist. Actual performance also depends on network congestion, LTE bands, carrier coverage, antenna specifications, cable losses, router capabilities, and environmental conditions.

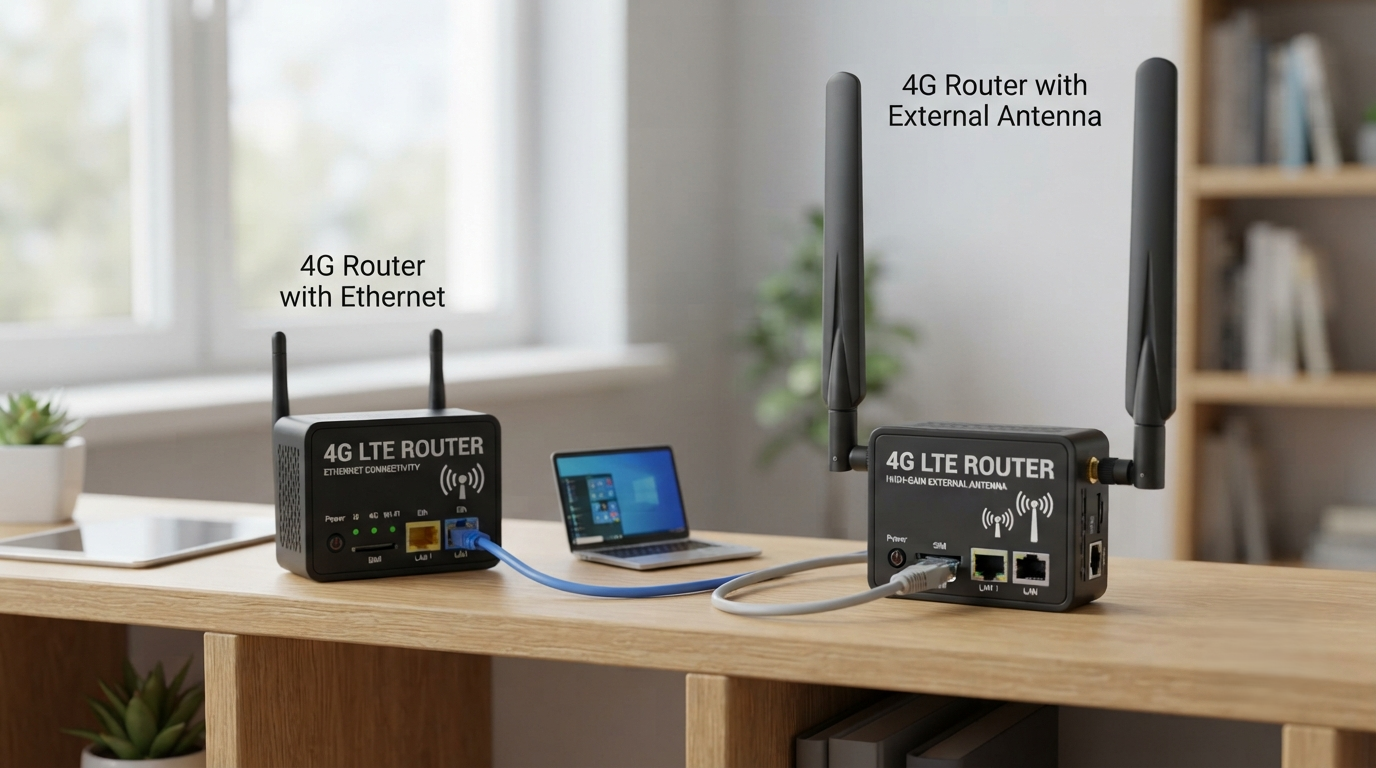

4G Router with Ethernet vs 4G Router with External Antenna
| Feature | 4G Router with Ethernet | 4G Router with External Antenna |
| Primary advantage | Reliable wired networking | Greater antenna positioning flexibility |
| Cellular connection | 4G LTE | 4G LTE |
| Ethernet support | Primary feature | Model dependent |
| Ideal environment | Offices, CCTV, POS and industrial networks | Rural or weak-signal locations |
| Wi-Fi availability | Usually available | Usually available |
| External antenna capability | Model dependent | Yes |
| Fixed device connectivity | Excellent | Depends on Ethernet availability |
Many modern routers actually provide both features. Choosing a model offering Ethernet ports and external antenna connectors can therefore provide greater installation flexibility.
Important Features to Consider Before Choosing a 4G Router
Purchasing a router solely on advertised maximum speed can be misleading. Network compatibility and installation requirements are equally important.
Consider:
- Supported LTE bands: Confirm compatibility with the mobile operator frequencies used in the deployment region.
- Ethernet ports: Determine how many LAN ports are required and whether Gigabit Ethernet is necessary.
- Antenna connectors: Check whether detachable cellular antennas and appropriate connectors are available.
- SIM compatibility: Confirm the required SIM format and carrier compatibility.
- Wi-Fi standard: Select wireless capabilities based on connected devices and expected traffic.
- Failover features: Businesses may require automatic switching between wired broadband and cellular connections.
- VPN capabilities: Remote facilities may benefit from secure VPN connectivity.
- Management tools: Remote configuration, monitoring, firmware management, and diagnostics can simplify maintenance.
For industrial installations, operating temperature, enclosure design, power supply options, DIN-rail mounting, watchdog functionality, and network security features may also matter.
Where Are 4G Routers Commonly Used?
A 4G router with Ethernet is useful wherever fixed wired equipment requires internet connectivity but conventional broadband is unavailable or impractical.
Retailers can connect POS equipment, warehouses can support monitoring systems, and remote offices can establish temporary business networks.
A 4G router with external antenna is particularly valuable in locations where indoor reception is challenging. Remote monitoring stations, agricultural facilities, rural businesses, transportation systems, construction sites, and industrial environments are common examples.
How to Improve 4G Router Performance
Router placement can significantly influence cellular performance. Place the device or antenna away from large metal obstacles and test different positions before permanent installation.
Where external antennas are supported, use antennas that match the router’s frequency bands and connector requirements. Keep antenna cable runs appropriate because excessive cable length can introduce signal loss.
Router firmware should also remain updated, and unnecessary network traffic should be controlled when bandwidth is limited.
Frequently Asked Questions
1. What is a 4G router with Ethernet?
It is a router that receives internet through a 4G LTE cellular network and provides wired LAN connectivity through Ethernet ports.
2. Does a 4G router require a SIM card?
Most cellular 4G routers require an activated SIM or another carrier-supported cellular provisioning method.
3. Can Ethernet provide better stability than Wi-Fi?
Ethernet generally provides a predictable local connection because it is less affected by wireless interference and physical obstacles.
4. What is a 4G router with external antenna?
It is a cellular router designed to use external LTE antennas for receiving and transmitting mobile network signals.
5. Can an external antenna increase internet speed?
It may improve performance when poor signal quality is the limiting factor, but speed still depends on carrier coverage, congestion, router capability, LTE bands, and other conditions.
6. Can I connect a network switch to a 4G router?
Yes, provided the router includes a suitable Ethernet LAN interface.
7. Are 4G routers suitable for CCTV systems?
Yes. They are commonly used for remote surveillance, although data consumption, upload bandwidth, security, and remote-access configuration should be considered.
8. Can a 4G router replace fixed broadband?
It can in many situations, particularly where wired broadband is unavailable. Suitability depends on network coverage, data plans, latency, speed, and usage requirements.
9. Do all 4G routers support external antennas?
No. Check the product specifications for external cellular antenna connectors before purchasing.
10. Can businesses use 4G routers as backup internet?
Yes. Routers supporting WAN failover can use cellular connectivity as a backup when the primary connection becomes unavailable.
