A straight seam welding machine is a specialized industrial system used to join metal sheets or cylindrical components along a straight line. It is widely used in the fabrication of tanks, pipes, drums, pressure vessels, automotive parts, and stainless steel products. By delivering consistent weld quality and higher production efficiency, this machine has become an essential tool in modern manufacturing.
What Is a Straight Seam Welding Machine?

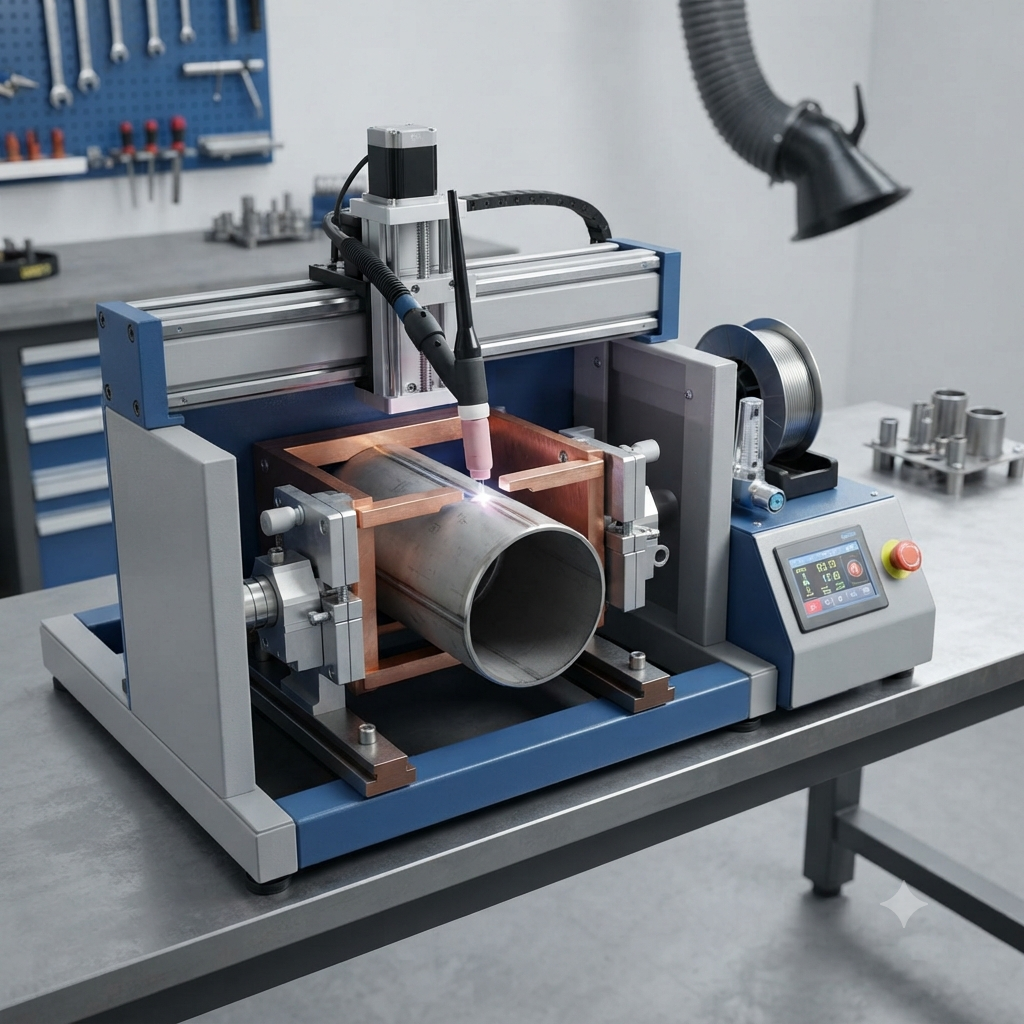

A straight seam welding machine is designed to hold two metal edges in precise alignment and weld them continuously along a straight seam. The machine can perform different welding processes, including TIG, MIG, plasma, and resistance seam welding, depending on the material and application.
Main Components
- Welding power source
- Clamping system
- Copper backing bar
- Travel carriage
- Control panel
- Cooling system
These components work together to ensure accurate positioning, stable heat input, and uniform weld penetration.
How Does It Work?
The machine operates by clamping the metal sheets firmly in place while the welding torch travels along the joint. The copper backing bar supports the molten metal and prevents burn-through, especially when welding thin materials.
Step-by-Step Process
- Metal sheets are aligned.
- The clamping system secures the workpiece.
- Welding parameters are set.
- The torch moves along the seam automatically.
- The welded joint cools and is inspected.
This automated process reduces operator error and improves repeatability.
Key Advantages
Higher Weld Quality
- Uniform bead appearance
- Better penetration control
- Reduced distortion
Improved Productivity
- Faster welding speeds
- Continuous operation
- Lower rework rates
Cost Savings
- Reduced material waste
- Less labor dependency
- Lower maintenance costs
Applications
Industries that commonly use straight seam welding machines include:
- Pressure vessel manufacturing
- Pipe and tube production
- Food processing equipment
- Chemical storage tanks
- Automotive exhaust systems
- HVAC duct fabrication
Comparison: Manual vs. Straight Seam Welding Machine
| Feature | Manual Welding | Straight Seam Welding Machine |
| Weld consistency | Moderate | Excellent |
| Production speed | Low | High |
| Operator skill dependency | High | Low |
| Material distortion | Higher | Lower |
| Long-term operating cost | Higher | Lower |
Factors to Consider Before Buying
When selecting a straight seam welding machine, evaluate:
Material Compatibility
Ensure the machine can weld stainless steel, carbon steel, aluminum, or other required materials.
Sheet Thickness
Choose a model that supports your production thickness range.
Automation Level
- Semi-automatic machines for small workshops
- Fully automatic CNC systems for high-volume manufacturing
After-Sales Support
Reliable technical support and spare parts availability are crucial for uninterrupted production.
Frequently Asked Questions (FAQs)
1. What materials can be welded?
Stainless steel, carbon steel, aluminum, and other alloys.
2. Is it suitable for thin sheets?
Yes, especially with TIG or plasma welding systems.
3. What is the typical welding speed?
It varies from 0.5 to 5 meters per minute depending on material and thickness.
4. Does it require a skilled operator?
Basic training is sufficient for automated models.
5. Can it weld cylindrical parts?
Yes, cylindrical shells can be welded before rolling or after tack assembly.
6. How is distortion minimized?
The clamping system and controlled heat input reduce warping.
7. What industries benefit the most?
Pressure vessel, pipe, automotive, and tank manufacturing industries.
8. Is maintenance difficult?
No, routine cleaning and inspection are usually enough.
9. Can the machine be integrated with automation?
Yes, many models support PLC and CNC integration.
10. What welding processes are supported?
TIG, MIG, plasma, and resistance seam welding.
