Selecting the correct stainless steel pipe is essential for pressure control, structural strength, corrosion resistance, installation cost, and long-term system reliability. Two commonly specified options are Stainless Steel Pipe Schedule 40 and Schedule 10 Stainless Steel Pipe. Although both may have the same nominal pipe size and outside diameter, their wall thickness, weight, pressure-handling capability, and suitable applications can be considerably different.
Understanding these differences helps engineers, contractors, fabricators, procurement teams, and plant operators select piping that meets actual operating requirements without unnecessary material expense.
What Does Pipe Schedule Mean?
Pipe schedule is a standardized way of identifying the approximate wall thickness of a pipe for a particular nominal pipe size. It is not a direct measurement in millimeters or inches.
As the schedule number generally increases, pipe wall thickness increases. Therefore, a Stainless Steel Pipe Schedule 40 normally has a thicker wall than a Schedule 10 pipe of the same nominal diameter.
However, users should always confirm actual dimensional data from the applicable standard because wall thickness changes according to pipe size.
Common stainless steel schedules include:
- Schedule 5S
- Schedule 10S
- Schedule 40S
- Schedule 80S
- Schedule 160
The letter “S” is frequently associated with stainless steel pipe dimensional schedules.
Understanding Stainless Steel Pipe Schedule 40
Stainless Steel Pipe Schedule 40 is widely selected for industrial piping systems where additional mechanical strength and pressure capability are required.
Its comparatively thicker wall provides improved resistance against mechanical damage, internal pressure, vibration, and demanding operating environments.
Common Schedule 40 Materials
Schedule 40 stainless pipes are frequently manufactured from grades such as:
- Stainless Steel 304
- Stainless Steel 304L
- Stainless Steel 316
- Stainless Steel 316L
Grade selection depends on temperature, chemical exposure, chloride concentration, fabrication requirements, and corrosion conditions.
Where Schedule 40 Performs Well
Typical applications include process piping, chemical plants, water systems, food-processing facilities, petrochemical installations, pharmaceutical equipment, structural fabrication, and industrial utility lines.
Because of its stronger wall section, Schedule 40 is often considered when durability and mechanical reliability are important design factors.
What Is Schedule 10 Stainless Steel Pipe?
Schedule 10 Stainless Steel Pipe is a thinner-wall piping option commonly used where moderate operating conditions make heavier pipe unnecessary.
Its reduced wall thickness means lower material weight, easier handling, and potentially lower project cost. It can therefore be attractive for large piping networks where pressure requirements remain within suitable design limits.
Schedule 10 stainless steel pipe is frequently found in:
- Low-pressure process systems
- Water distribution
- Drainage lines
- Food and beverage plants
- Pharmaceutical installations
- Architectural applications
- Light industrial piping
- Certain fire protection systems
Its suitability must still be determined through engineering calculations rather than schedule number alone.

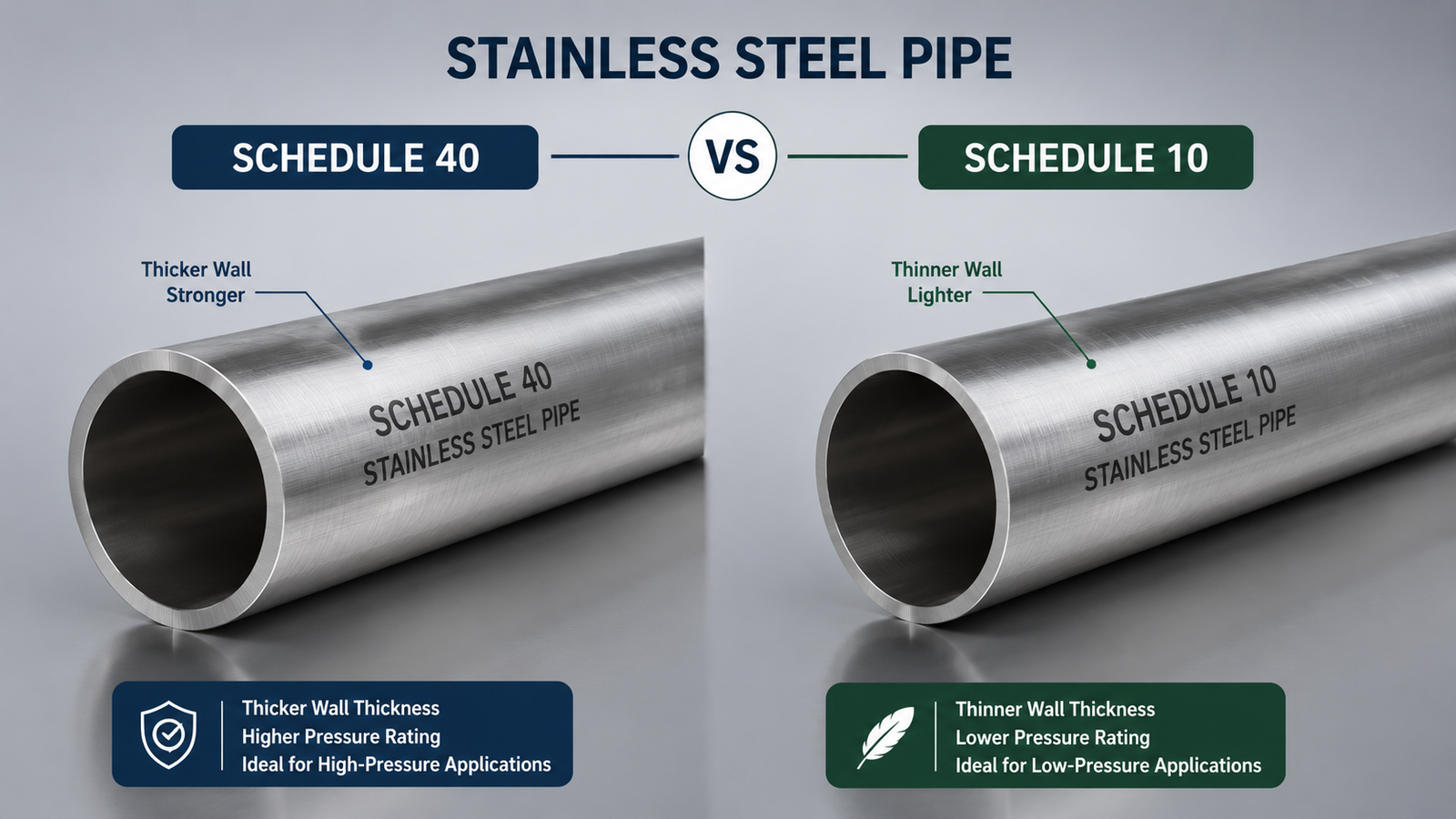

Schedule 40 vs Schedule 10 Stainless Steel Pipe
The fundamental difference between these two pipe schedules is wall thickness.
| Feature | Schedule 10 Stainless Steel Pipe | Stainless Steel Pipe Schedule 40 |
| Wall thickness | Thinner | Thicker |
| Pipe weight | Lower | Higher |
| Material requirement | Less | More |
| Pressure capability | Generally lower | Generally higher |
| Handling | Easier | Heavier |
| Mechanical strength | Moderate | Higher |
| Cost | Usually lower | Usually higher |
| Typical use | Light/moderate duty | Moderate/heavy duty |
The outside diameter generally remains the same for pipes having the same nominal size, while the inside diameter changes because of different wall thicknesses.
Why Wall Thickness Matters
Wall thickness affects much more than the weight of a stainless steel pipe. It influences allowable pressure, internal flow area, structural rigidity, welding requirements, installation effort, and resistance to mechanical damage.
A thicker-wall Stainless Steel Pipe Schedule 40 may provide additional durability, but automatically choosing the thicker pipe can increase material and installation expenses unnecessarily.
Similarly, choosing Schedule 10 Stainless Steel Pipe simply because it costs less may be inappropriate if pressure, temperature, corrosion allowance, or external loads require a stronger wall.
Pressure Rating and Operating Conditions
Pipe schedule should never be treated as an independent pressure rating.
Actual allowable working pressure depends on several factors, including:
- Pipe outside diameter
- Wall thickness
- Stainless steel grade
- Operating temperature
- Applicable design code
- Weld quality
- Corrosion allowance
- Joint type
- Safety factors
Higher temperatures can reduce the allowable stress of stainless steel. Corrosive environments can also affect required wall thickness over the expected operating life.
Professional engineering calculations should therefore determine whether Schedule 10, Schedule 40, or another schedule is appropriate.
Choosing the Correct Stainless Steel Grade
Selecting the right schedule is only part of proper piping design. Stainless steel grade is equally important.
304 stainless steel pipe is widely used for general-purpose applications because of its corrosion resistance, fabrication characteristics, and availability.
316 stainless steel pipe contains molybdenum, providing improved resistance in many chloride-containing and aggressive environments.
Low-carbon grades such as 304L and 316L are commonly considered where welding performance and resistance to sensitization are important.
Advantages of Stainless Steel Pipe Schedule 40
Major benefits include:
- Greater wall thickness
- Improved mechanical strength
- Better resistance to accidental impact
- Suitability for many higher-demand systems
- Long service life when correctly selected
- Excellent corrosion resistance with suitable grades
Its primary disadvantages are greater weight, increased material consumption, and potentially higher fabrication and installation costs.
Advantages of Schedule 10 Stainless Steel Pipe
Important benefits of Schedule 10 Stainless Steel Pipe include reduced weight, easier transportation, simpler handling, and lower material consumption.
The larger internal diameter available within the same nominal pipe size may also provide favorable flow characteristics compared with a thicker-wall alternative.
Schedule 10 can therefore be an economical solution when engineering conditions do not require heavier piping.
How to Select Between Schedule 10 and Schedule 40
Before purchasing stainless steel piping, evaluate:
- Design pressure
- Maximum and minimum temperature
- Fluid or gas being transported
- Corrosion environment
- Required stainless steel grade
- Pipe diameter
- Flow requirements
- Welding method
- External mechanical loads
- Applicable piping standards and codes
The correct selection should balance safety, service life, performance, and total installed cost.
Stainless Steel Pipe Applications
Both schedules are used across industries including oil and gas, chemical processing, pharmaceuticals, food production, power generation, water treatment, construction, marine systems, and manufacturing.
The deciding factor is not simply the industry. Engineers must evaluate the exact service conditions of each piping system.
Frequently Asked Questions
1. What is Stainless Steel Pipe Schedule 40?
It is stainless steel pipe manufactured with a standardized wall thickness associated with the Schedule 40 dimensional designation.
2. What is Schedule 10 stainless steel pipe?
It is a comparatively thinner-wall stainless steel pipe designed for applications where its calculated strength is sufficient.
3. Is Schedule 40 thicker than Schedule 10?
Yes, for the same nominal pipe size, Schedule 40 is generally thicker.
4. Is Schedule 40 stronger?
Its thicker wall generally provides greater mechanical and pressure capability, subject to material grade and design conditions.
5. Is Schedule 10 cheaper?
It is often less expensive because less stainless steel is required, although market prices and fabrication costs vary.
6. Can Schedule 10 be welded?
Yes. Appropriate welding procedures, filler materials, cleanliness, and qualified fabrication practices should be followed.
7. Which schedule is better for high pressure?
Schedule 40 may offer greater pressure capability, but proper code-based calculations are necessary.
8. Does schedule change outside diameter?
For the same nominal pipe size, schedules typically maintain the same standardized outside diameter while wall thickness changes.
9. Is 316 better than 304 stainless steel?
316 provides improved resistance in many chloride-rich environments, while 304 remains suitable for numerous general applications.
10. How should I choose the correct pipe?
Consider pressure, temperature, corrosion, material grade, diameter, fabrication method, standards, and expected service life.
