The development of steel tube manufacturing has played an important role in the growth of modern construction, automotive, infrastructure, machinery, energy, and engineering industries. Behind the production of millions of steel tubes is a highly organized manufacturing system known as a Tube Mill Line. Among the most widely used technologies in this field is the Electric Resistance Welding, or ERW, Tube Mill Line.
An ERW tube mill does much more than simply weld steel. It combines material feeding, forming, edge preparation, high-frequency welding, sizing, straightening, cutting, inspection, and material handling into a continuous production process. The technology has changed considerably over the years, and its future is now moving toward intelligent automation, digital quality control, predictive maintenance, and sustainable manufacturing.
Understanding the ERW Tube Mill Line

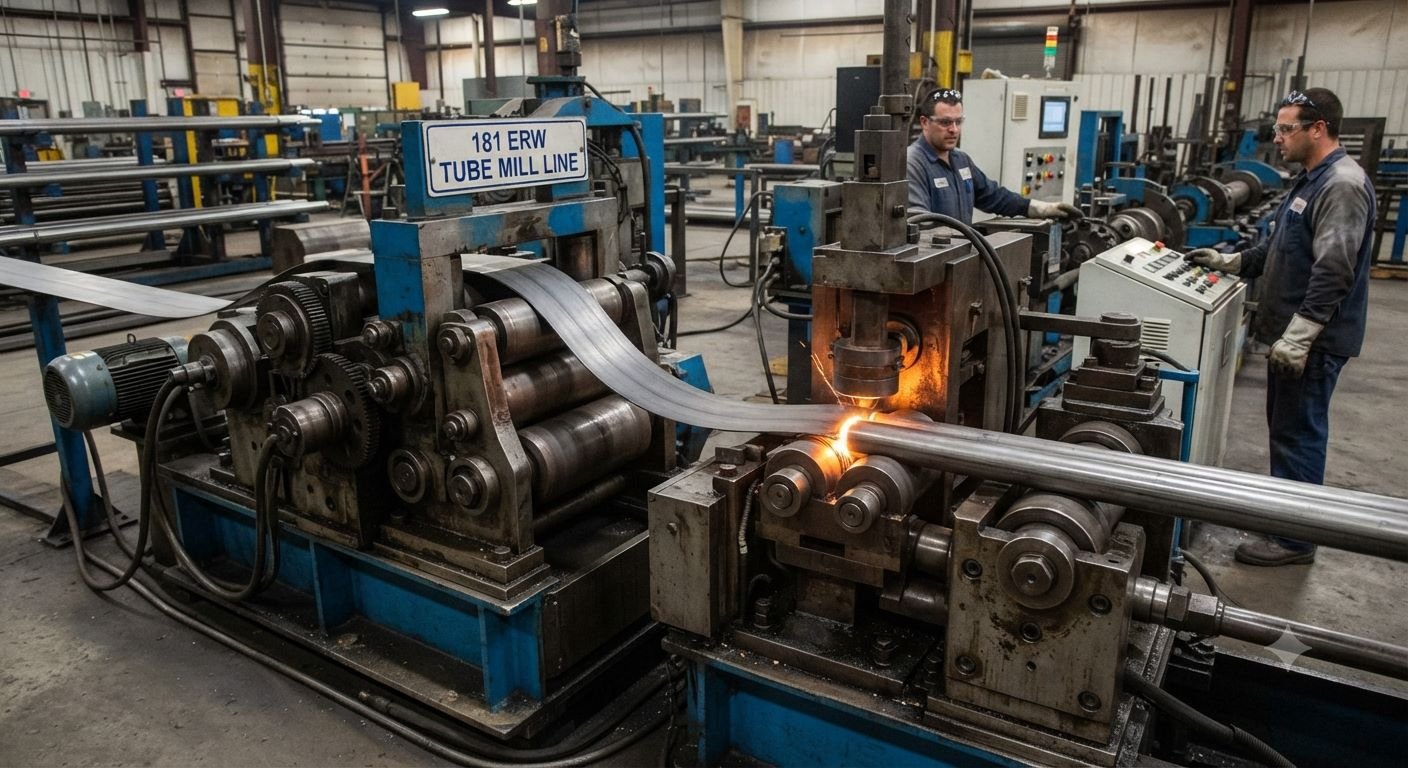

An ERW Tube Mill Line is an integrated production system designed to convert steel strip or coil into welded tubes and profiles. The process begins with a flat steel strip and progressively transforms it into a tubular shape.
The edges of the formed strip are then heated using electrical energy and brought together under controlled pressure. This creates a longitudinal welded seam without requiring conventional filler metal.
The exact configuration of a mill depends on factors such as:
- Tube diameter
- Wall thickness
- Steel grade
- Production speed
- Product profile
- Required tube length
- Production volume
- Level of automation
A small precision tube mill and a large structural tube mill may therefore use the same fundamental ERW concept while having substantially different equipment configurations.
The Past: Evolution of Tube Mill Technology
The history of tube manufacturing began with relatively simple mechanical processes. Early production involved considerable manual intervention, and individual manufacturing stages were less integrated.
As industrial demand increased, manufacturers needed continuous systems that could produce large quantities of tubes with more consistent dimensions.
Development of Continuous Forming
The introduction of continuous roll forming represented a major step forward. Instead of shaping steel through isolated operations, a series of forming rolls gradually bent the strip into the required tubular profile.
This approach increased production efficiency and created the foundation for modern tube mills.
Development of Resistance Welding
Resistance welding introduced another major improvement. By generating heat through electrical resistance at the strip edges, manufacturers could create a continuous longitudinal seam.
High-frequency electrical systems later allowed the welding process to operate at increasingly high production speeds while providing improved control over welding conditions.
Major Improvements Over the Years
Tube mill technology gradually developed through improvements in nearly every section of the production line.
Important developments included:
- More precise roll-forming stands
- Improved high-frequency welding systems
- Automatic strip feeding
- Better weld-seam control
- Automatic flying saws
- PLC-based machine control
- Servo-driven systems
- Online measurement equipment
- Automated material handling
- Digital production monitoring
These developments transformed the tube mill from a primarily mechanical machine into an integrated manufacturing system.
How a Modern ERW Tube Mill Line Works
The manufacturing process starts with a steel coil selected according to the required product specification.
1. Uncoiling and Strip Preparation
The coil is loaded onto an uncoiler. The strip is then introduced into the production line at a controlled speed.
Depending on the system design, an accumulator may be used to maintain continuous material supply during coil joining or other entry operations.
2. Forming Section
The flat strip passes through multiple roll-forming stands. Each stand performs a controlled amount of bending.
The gradual forming process is important because excessive deformation at a single stage can create dimensional problems, edge stress, or instability.
3. ERW Welding Section
Once the strip has reached an appropriate tubular shape, its edges approach each other at the welding point.
High-frequency electrical energy generates heat at the edges. Mechanical pressure then forces the heated edges together, creating the longitudinal weld.
Welding conditions must be carefully controlled because weld quality directly influences the reliability of the finished tube.
4. Weld Seam Processing
Depending on the product and specification, the weld area may undergo additional processing. External weld bead removal can be incorporated where required.
5. Sizing and Straightening
After welding, the tube passes through sizing stands. These rolls help establish the required final dimensions and geometry.
Straightening equipment may also be incorporated to improve the final alignment of the tube.
6. Cutting
An automatic cutting system divides the continuous tube into predetermined lengths.
Flying saw technology is particularly valuable because it can synchronize the cutting operation with the moving tube, reducing unnecessary production interruptions.
7. Inspection and Collection
Finished tubes can be inspected for dimensional accuracy and other quality characteristics before being transferred to the collection section.
Major Components of an ERW Tube Mill
A complete production line may include many interconnected components.
| Component | Main Function |
| Uncoiler | Holds and feeds steel coil |
| Entry section | Guides and prepares strip |
| Accumulator | Supports continuous production |
| Forming stands | Gradually shape the strip |
| High-frequency welder | Produces the ERW seam |
| Weld-seam unit | Processes the welded area |
| Sizing stands | Establish final dimensions |
| Straightener | Improves tube alignment |
| Flying saw | Cuts tubes to length |
| Run-out table | Transfers finished tubes |
| Control system | Coordinates machine operation |
The performance of the complete mill depends on how effectively these individual systems work together.
Why Production Control Is Critical
A tube mill operates through interconnected processes. A small problem in one section can influence downstream operations.
For example, inconsistent strip feeding can affect forming stability. Poor forming can influence the weld position, while incorrect welding conditions can affect weld quality.
Modern mills therefore use sensors and control systems to monitor important operating parameters.
Digital Monitoring
Modern control systems can provide information about:
- Production speed
- Motor loads
- Welding parameters
- Tube dimensions
- Machine status
- Fault conditions
- Production quantities
- Maintenance requirements
This information gives operators better visibility into the manufacturing process.
Applications of ERW Tube Mill Products
ERW tubes are used across a wide range of industries because steel tube provides a useful combination of strength, geometry, manufacturability, and cost efficiency.
Common applications include:
- Structural frameworks
- Construction components
- Automotive parts
- Furniture frames
- Agricultural machinery
- Industrial equipment
- Engineering structures
- General fabrication
- Infrastructure projects
- Mechanical applications
Different applications require different tube dimensions, material grades, surface conditions, and performance characteristics.
Challenges in Tube Mill Manufacturing
Despite significant technological progress, manufacturers still face several challenges.
Maintaining Weld Quality
The welding section must operate within appropriate process conditions. Variations in material, electrical parameters, alignment, or pressure can influence the resulting seam.
Reducing Scrap
Poor forming, incorrect setup, welding instability, or dimensional deviations can create rejected products. Scrap reduction is therefore closely connected to process control.
Managing Changeovers
Manufacturers producing multiple tube sizes may lose significant production time during changeovers. Quick-change tooling and programmable settings can help address this challenge.
Controlling Maintenance Costs
A tube mill contains many mechanical, electrical, and electronic components. Unexpected failure can interrupt the entire production process.
For this reason, preventive and predictive maintenance are becoming increasingly important.
The Future of ERW Tube Mill Technology
The future of the ERW Tube Mill Line will be strongly influenced by Industry 4.0 principles.
Manufacturers are moving toward connected equipment in which machines continuously generate and exchange production information.
Artificial Intelligence
AI can analyze large amounts of production data and identify patterns associated with quality problems or equipment deterioration.
Rather than replacing human expertise, AI can become a decision-support tool for operators, engineers, and maintenance teams.
Predictive Maintenance
Future systems may monitor vibration, temperature, electrical load, lubrication conditions, and other parameters.
When the system detects abnormal behavior, it can generate an early warning.
This approach can help manufacturers:
- Reduce unexpected downtime
- Improve maintenance planning
- Extend component life
- Increase equipment availability
- Reduce emergency repair expenses
Future Quality Inspection
Inspection is also expected to become more automated.
Vision cameras, laser measurement systems, sensors, and software can continuously evaluate tube characteristics. Instead of discovering problems only after production is complete, manufacturers can identify deviations during the manufacturing process.
This creates a shift from quality inspection toward quality prevention.
Flexible and Smart Manufacturing
Future tube mills will need to handle changing customer requirements more efficiently.
Digital production recipes could allow operators to select stored settings for particular tube specifications. Automated adjustments could reduce setup time and improve repeatability.
This will be particularly valuable for manufacturers producing many different tube sizes in relatively short production runs.
Energy Efficiency and Sustainability
Sustainability will also become an important part of tube mill development.
Manufacturers can improve efficiency by optimizing motors, drives, welding systems, and production parameters. Reducing scrap also contributes directly to resource efficiency.
Future systems may provide detailed energy information for individual production stages, helping manufacturers understand where energy is being consumed and where improvements are possible.
How to Choose a Tube Mill for Long-Term Use
Selecting a tube mill requires more than comparing production speeds. Manufacturers should examine the entire production requirement.
Important considerations include:
- Required tube diameter range
- Wall thickness
- Material grades
- Production capacity
- Welding technology
- Forming accuracy
- Changeover requirements
- Automation level
- Inspection capabilities
- Energy consumption
- Spare-parts availability
- Technical support
- Installation and commissioning
- Future expansion possibilities
A suitable machine should provide a balance between production capacity, quality, flexibility, reliability, and total operating cost.
Frequently Asked Questions
What does ERW stand for?
ERW stands for Electric Resistance Welding, a process that uses electrical resistance to generate heat for joining the edges of steel strip.
What is the main purpose of a Tube Mill Line?
Its primary purpose is to continuously transform steel strip into welded tubes or profiles through forming, welding, sizing, and cutting operations.
What materials can ERW tube mills process?
Many ERW mills are designed for carbon steel and other suitable steel grades, depending on their configuration and application requirements.
Why is roll forming performed gradually?
Gradual forming helps control deformation, reduce excessive stress, and achieve stable tube geometry.
What determines ERW weld quality?
Material characteristics, edge condition, alignment, electrical parameters, welding speed, and mechanical pressure can all influence weld quality.
Why is sizing necessary after welding?
Sizing helps establish the final tube dimensions and improve geometric consistency.
What is a flying saw?
A flying saw is an automatic cutting system designed to cut continuously moving tubes into specified lengths.
How does automation improve production?
Automation can improve repeatability, reduce manual intervention, provide process information, and support faster troubleshooting.
Why is predictive maintenance becoming important?
Unexpected equipment failure can stop an entire production line. Predictive maintenance aims to identify potential failures before they cause major downtime.
What is the future direction of ERW Tube Mill Lines?
The industry is moving toward intelligent automation, AI-supported analysis, predictive maintenance, automated inspection, flexible manufacturing, digital connectivity, and improved energy efficiency.
