The steel tube manufacturing industry is changing rapidly. As demand grows across construction, infrastructure, agriculture, furniture, automotive and industrial applications, manufacturers need production systems that can deliver consistent quality while keeping operations efficient.
This is where an ERW Tube Mill Line becomes an important part of modern steel tube production.
But what exactly is an ERW tube mill? How does it convert a flat steel coil into a finished tube? What equipment is required, and how should manufacturers choose the right production configuration?
Let’s explore the complete process.
What Is an ERW Tube Mill?

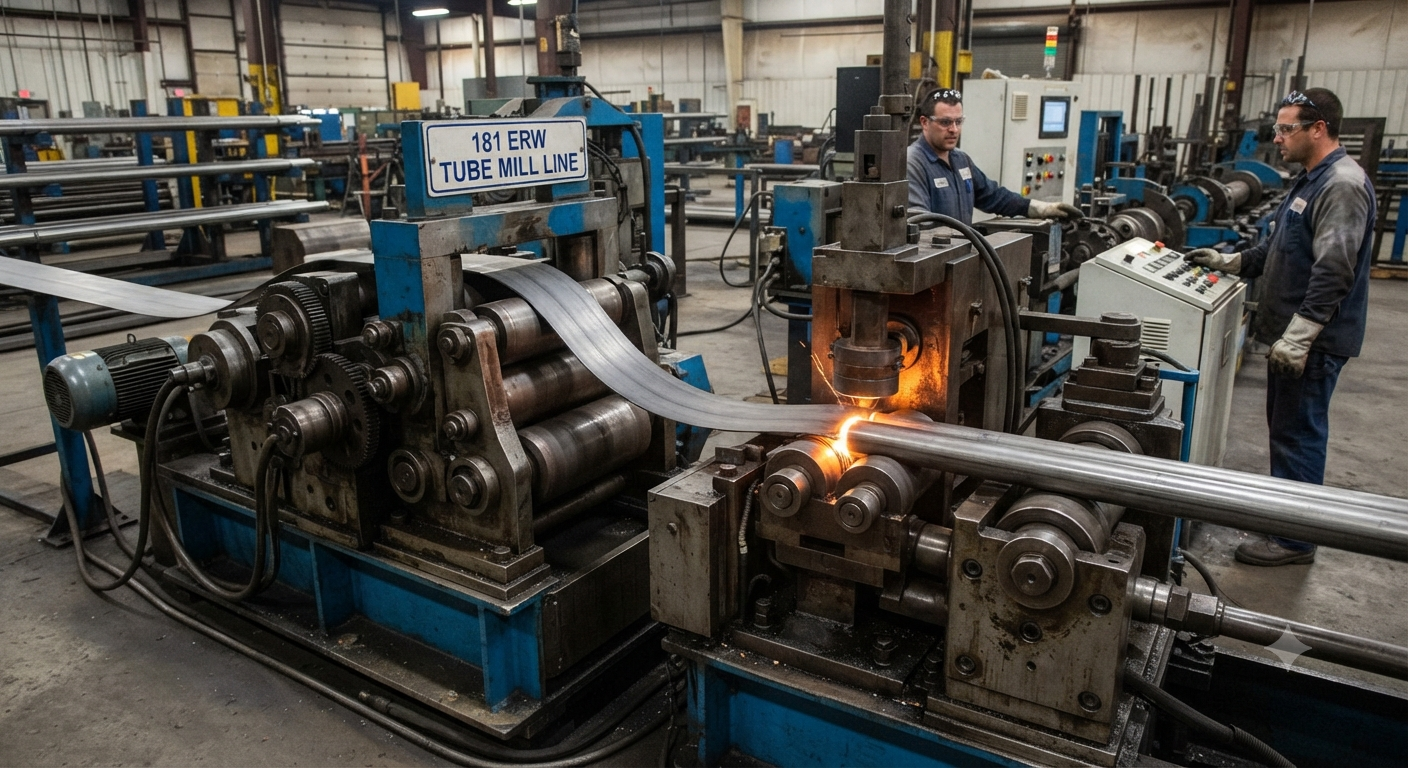

ERW stands for Electric Resistance Welding. An ERW tube mill is a continuous production system that takes steel strip from a coil, gradually forms it into a tubular shape, welds the longitudinal seam and then produces finished tubes according to the required size and length.
A modern Tube Mill Line combines several production stages into one coordinated system. Instead of handling each operation separately, manufacturers can move steel strip through forming, welding, cooling, sizing and cutting in a continuous production process.
ERW technology is commonly used to manufacture tubes for:
- Construction projects
- Scaffolding systems
- Greenhouse structures
- Furniture
- Structural applications
- Industrial equipment
- General engineering
- Automotive components
The exact equipment configuration depends on the tube dimensions, material, wall thickness, production capacity and intended application.
How Does an ERW Tube Mill Production Line Work?
The production process starts with steel coil. The coil is loaded onto the uncoiler, which feeds the strip into the production line.
The typical process flow is:
Uncoiling → Shearing and Butt Welding → Accumulation → Forming → High-Frequency Welding → Cooling → Sizing → Flying Saw Cutting → Run-Out → Packing
Each section has a specific purpose, and all sections must operate in coordination to achieve stable production.
1. Uncoiling
The uncoiler holds the steel coil and continuously feeds the strip into the production system.
A stable and controlled strip supply is important because inconsistent feeding can affect downstream forming and welding operations.
2. Shearing and Butt Welding
When one steel coil is finished, the end of the previous strip is connected to the beginning of the next coil.
This allows the production process to continue with minimal interruption.
3. Accumulator
The accumulator stores a certain amount of strip material and helps maintain continuous operation during coil joining.
This section is particularly important for maintaining production stability and reducing unnecessary downtime.
4. Forming
The flat steel strip passes through multiple forming rolls.
Gradually, the strip changes from a flat shape into a circular or other tubular profile. Accurate forming is essential because the edges must meet correctly before welding.
5. High-Frequency Welding
Once the strip has been formed, the edges are heated and joined using high-frequency welding technology.
This creates the longitudinal seam that holds the tube together.
The welding system must be carefully selected according to the steel material, tube size, wall thickness and production speed.
6. Cooling
After welding, the tube passes through a cooling section to reduce the temperature before entering the sizing process.
7. Sizing
The sizing mill uses precision rolls to control the final dimensions of the tube.
This stage helps ensure that the finished product meets the required outside diameter, shape and dimensional tolerances.
8. Flying Saw Cutting
The continuously produced tube is cut into predetermined lengths using a flying saw.
Because the saw can operate while the tube continues moving through the line, it helps maintain continuous production.
9. Run-Out and Packing
After cutting, finished tubes move to the run-out table, where they can be collected, inspected and prepared for storage or packing.
Why Is High-Frequency Welding So Important?
The welding section is one of the most critical parts of the entire production system.
High-frequency welding must be properly matched with the product specifications. If the welding system is not suitable for the material or wall thickness, manufacturers may experience unstable seam quality or production limitations.
When planning an ERW Tube Mill Line, buyers should provide information such as:
- Steel grade
- Tube diameter
- Wall thickness
- Production speed
- Required output
- Product application
This information allows the equipment supplier to recommend an appropriate welding power system and supporting equipment.
How to Choose the Right Tube Mill?
Choosing a tube mill is not simply about buying the fastest machine available.
The right equipment depends on what you want to manufacture.
For example, a manufacturer producing lightweight furniture tubes may have completely different requirements from a company manufacturing heavy structural tubes.
Before investing in a production system, consider:
Product Range: What sizes and shapes will you manufacture?
Material: What steel grades will be processed?
Wall Thickness: What is the minimum and maximum thickness?
Capacity: How many tons or meters do you expect to produce?
Speed: What production speed is required?
Automation: How much manual intervention is acceptable?
Tooling: How many sizes will the mill need to produce?
Future Growth: Will you expand your product range later?
Answering these questions can help you select a configuration that matches both current and future business needs.
Can an ERW Mill Produce Square and Rectangular Tubes?
Yes, depending on the machine configuration and tooling.
Square and rectangular tubes are widely used in construction, structural fabrication, furniture and industrial applications.
Manufacturers planning to produce these profiles should discuss their complete product range with the supplier before purchasing the equipment.
Depending on the required dimensions and production volume, different forming methods may be considered.
Planning this requirement early can help manufacturers select suitable tooling and avoid unnecessary modifications in the future.
Do You Need a Steel Coil Slitting Line?
Another important question is raw material preparation.
An ERW tube mill requires steel strips with appropriate widths. If a factory purchases large-width steel coils, a slitting line may be needed to divide them into narrower strips.
A typical integrated production workflow may look like:
Wide Steel Coil → Coil Slitting → Strip Storage → Tube Forming → Welding → Sizing → Cutting → Finished Tube
For new factories, planning the slitting line and Tube Mill Line together can improve material handling and production organization.
It can also provide greater control over raw material inventory and strip availability.
Why Factory Layout Planning Matters
A production line needs adequate space not only for the machines but also for raw material handling, maintenance and finished product storage.
Before purchasing equipment, manufacturers should review:
- Workshop length and width
- Crane capacity
- Electrical supply
- Machine foundations
- Coil loading routes
- Raw material storage
- Operator working space
- Maintenance access
- Finished tube storage
- Packing areas
- Future expansion space
A detailed factory layout can help engineers determine where each piece of equipment should be installed.
It can also reduce potential problems during installation and commissioning.
What Information Should You Give a Tube Mill Manufacturer?
The more information you provide, the easier it becomes for a manufacturer to prepare an appropriate technical proposal.
Before requesting a quotation, prepare:
- Tube shape
- Round tube diameter range
- Square and rectangular tube sizes
- Wall thickness range
- Steel material and grade
- Finished tube length
- Product application
- Target production capacity
- Desired line speed
- Automation requirements
- Workshop dimensions
- Project type
If some information is not yet finalized, you can simply mention that it is “to be confirmed based on project requirements.”
A professional supplier can then help evaluate the missing specifications.
What Can Zhongyue Provide?
For manufacturers planning to establish a new steel tube factory or upgrade an existing production facility, Zhongyue can provide project-oriented support based on individual production requirements.
The support may include:
- Production process discussions
- Equipment configuration
- Production line planning
- Layout recommendations
- Technical quotation preparation
- Equipment manufacturing
- Assembly
- Pre-shipment inspection
- Installation guidance
- Commissioning support
- Operator training
- After-sales communication
The final equipment configuration and service scope should be confirmed according to the specific project requirements and contractual agreement.
